Condition: Brand New
Tyre Quantity: 10 tyre
Driving Type: 6x4
Loading: 1-20ton
Color : Optional
Product Description
|
Cabin
|
Driving type 6x4 LHD |
|||
|
HOWO 76 cab, with air condition and one bed |
||||
|
Vehicle Main Dimensions
|
Overall dimensions (L x W x H) mm |
11000×2500×3900 |
||
|
Carriage Size (L x W x H) mm |
7000×2300×600 |
|||
|
Wheel base (mm) |
5225+1350 |
|||
|
Wheel track (front/rear) (mm) |
2022/1830 |
|||
|
Weight in KGS
|
Tare Weight |
16100 |
||
|
payload |
25000 |
|||
|
Front axles loading capacity |
1x9000 |
|||
|
Rear axles loading capacity |
2x16000 |
|||
|
Max. driving speed(km/h) |
90 |
|||
|
Engine
|
Brand |
Sinotruck |
||
|
Model |
WP12.400E201 |
|||
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||
|
Horse Power(HP) |
400/430 |
|||
|
Emission standard |
Euro Ⅱ |
|||
|
Gearbox |
HW19710 10 Forwards gear & 2 reverse gear |
|||
|
Clutch |
Reinforced diaphragm clutch, diameter 430 mm |
|||
|
Steering Gear |
BOSCH |
|||
|
Tire |
12.00R20 10+1
|
|||
|
Crane specifications
|
Brand : XCMG |
|||
|
Type: Telescopic |
||||
|
Max lift capacity: Optional |
||||

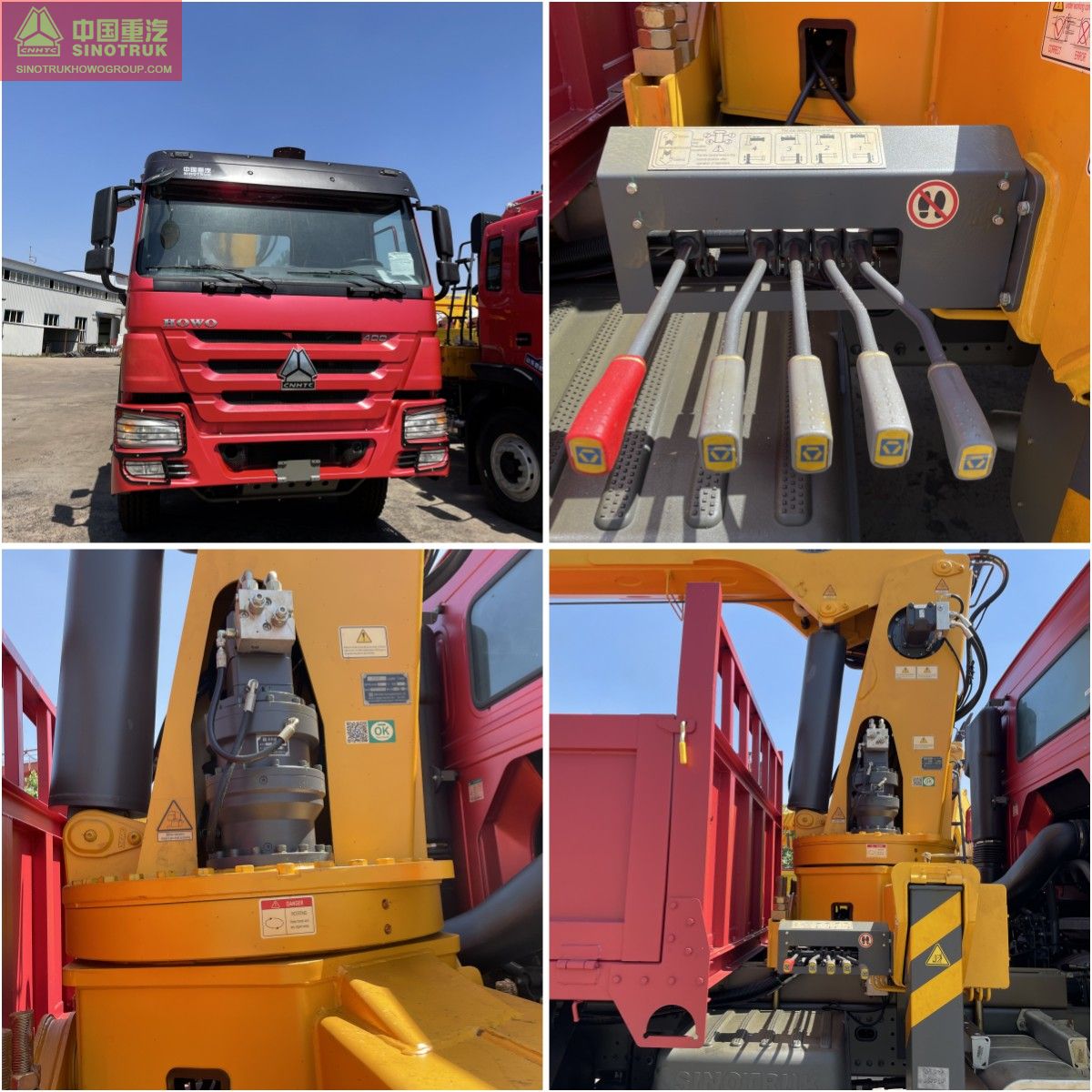

Product Images
