Product name

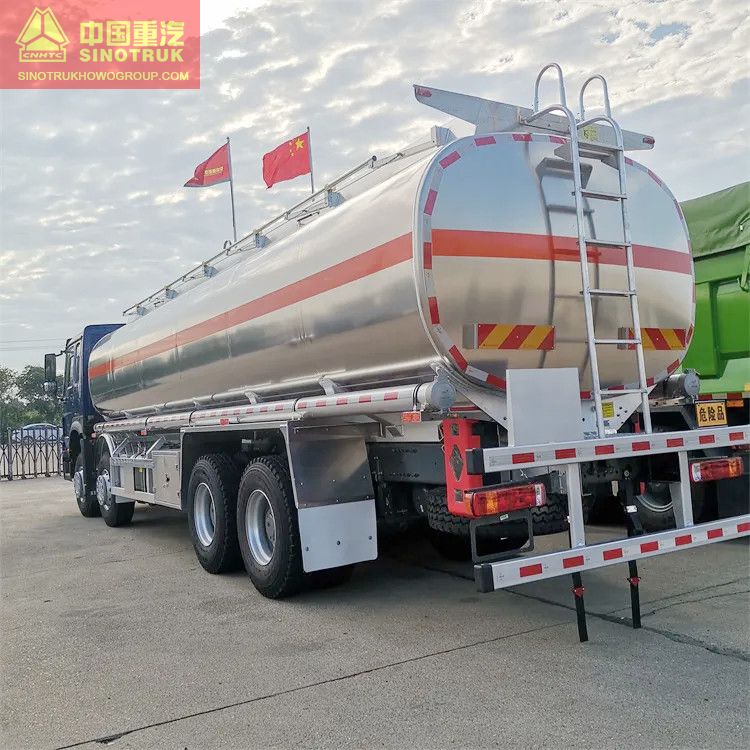

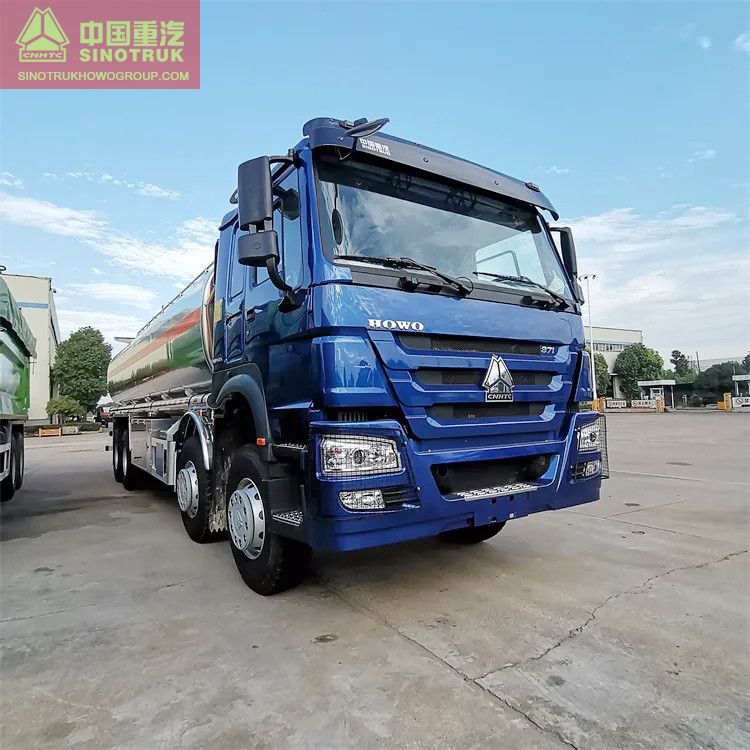

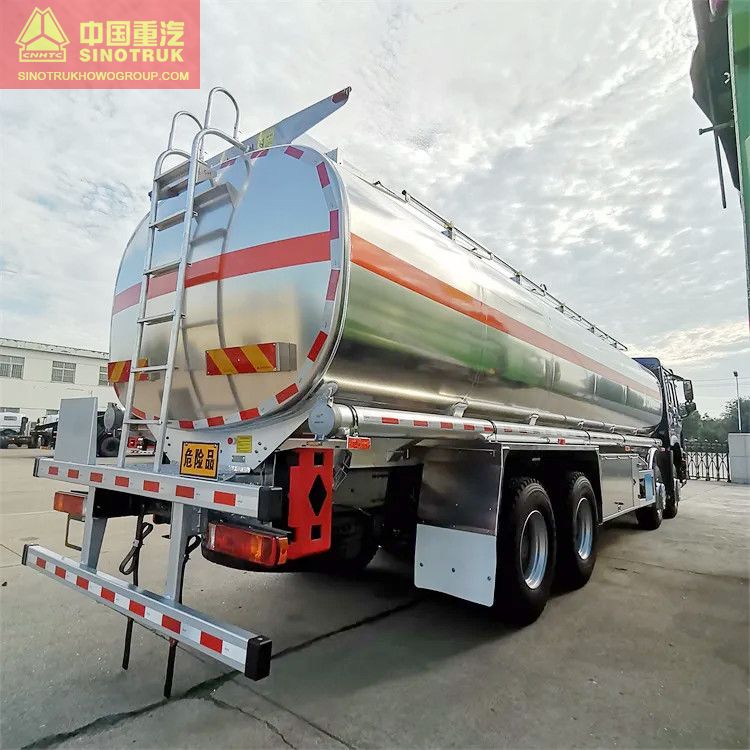

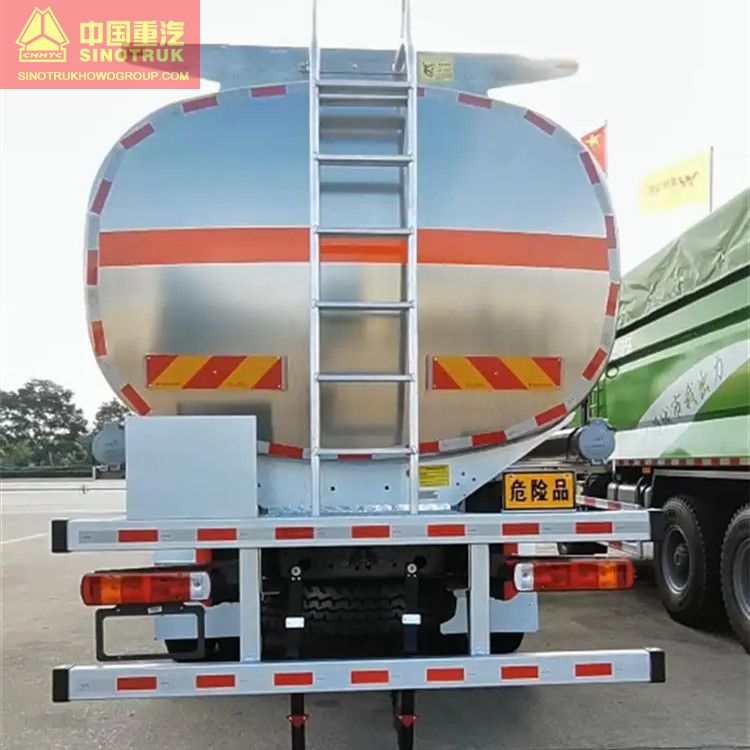

20m3 fuel tank truck

Tank volume

20m3

Chassis

HOWO

Overall dimension(mm)

11150*2500*3350

Tank dimension(mm)

8400x2450x1650

Gross weight(Kg)

25000

Wheelbase(mm)

1900+4160+1350

Rated load weight(Kg)

14195

Drive type

8*4

Curb weight(Kg)

10805

Fuel type

diesel

Axle No.

4

Emission standard

Euro 2/Euro 3/Euro 4/ Euro5

Cab seats(person)

2

Transmission

9-speed gearbox

Approach/departure angle(°)

20/18

Tires No.

12+1 spare tire

Axle load (Kg)

7000/18000

Tire specification

10.00R

Front/rear hang(mm)

1040/1647

Max speed(km/h)

80

Front/Rear track(mm)

1503/1485

Steel spring number

6/6+5
