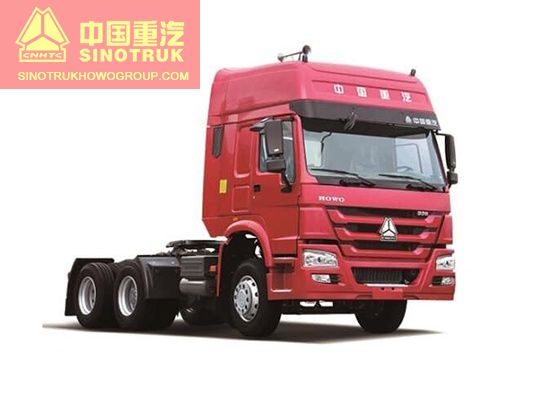

howo 10 wheeler tractor head
- Release time：
- Source：Sinotruk HOWO
howo 10 wheeler tractor head
1. High quality and competitive price. Good partners like MAN,Volvo and Steyr.
2. Quick response to your inquiry, we have special sales team for different markets
3. Flexible payment terms,T/T, L/C and installment.
4. Rich experience and stong production capacity, 60 years experience and 50000 units annual output.
|
Model |
HOWO 6x4 tractor head |
|
|
Cabin |
Four points suspension Cabin with spring and air shock absorber, Adjustable steering, Sun cover, A/C, low cabin with single sleeper |
|
|
Engine |
Type: Diesel 4-stroke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. |
|
|
Model: |
D10.340 |
STEYR technology(CNHTC) |
|
|
Engine power |
340hp/250kw |
|
|
Displacement(L): |
9.726 liter (EuroII standard) |
|
|
Max torque: |
1700NM@1100-1400rpm |
|
|
Bore/stoke: |
126mm/155mm |
|
|
Fuel consumption: |
188g /kwh |
|
Gear box |
CNHTC |
Max torque:1900NM |
|
|
Model: |
HW19710 |
|
|
Speed: |
10speed, 2 reverse |
|
Axle(front/rear) |
||
|
Front axle |
HF9 STEYR technology front steering axle |
|
|
Tandem |
HC16 double reduction hub reductor driving axle |
|
|
Clutch |
D430 diaphragm type clutch |
|
|
Brake |
Service brake: Dual lines air brake |
|
|
|
Parking brake: Spring-Power drum brake |
|
|
|
Engine brake: Engine exhaust brake(EVB) |
|
|
Steering |
Power steering, driver sit at the left hand side |
|
|
Electric Equipment |
||
|
|
Operating voltage: |
24Vnegative grounded |
|
|
Starter: |
24V,5.4KW |
|
|
Alternator |
28V,758W |
|
|
Battery voltage |
12V/135Ah,cigar lighter |
|
Frame |
Strengthen steel frame, designed according to tough road condition. |
|
|
Tyre |
10+1 spare tyre with rim |
|
|
|
12.00R20 radial tyre |
|
|
Suspension system: Strengthen heavy duty Leaf spring type |
||
|
|
Front/Rear |
9/12 |
|
Overall dimension(mm): 6800x2496x2958 (Length x width x height) |
||
|
Wheelbase |
3225+1350mm |
|
|
Track: |
|
|
|
|
Front/Rear |
2022/1830 |
|
|
Approach/Departure angle |
16/70 |
|
|
Front /Rear overhang |
1500/725 |
|
|
Max speed |
102km/h |
|
Kerb weight: |
9230kg |
|
