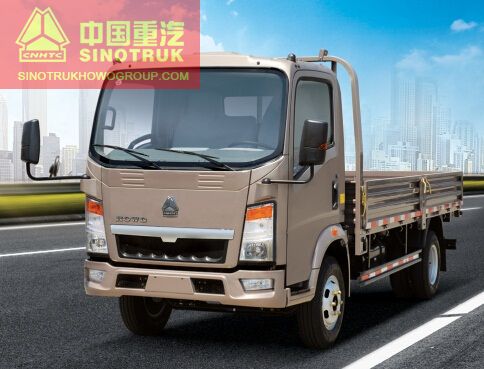

HOWO Light Truck Cargo Truck

Release time：Oct 4, 2025
Source：Sinotruk HOWO

HOWO Light Truck(4x2 Rigid)

Rated Payload 2T 490/498/4100

Dimensions (mm)
Vehicle Model			ZZ1047C2813D145	ZZ1047D3413C145
Cab width			1760	1760
L1 Wheelbase			2800	3360
L2Front overhang			1160	1160
L4Rear overhang			1355	1375
L6 Centre line of front axle to back of cab		- without sleeper	481	481
		- with sleeper	781	781
B1 Frontwheel track			1605	1605
B3 Rear wheel track			1520	1520
L Chassis length			5315	5895
B2Chassis width			1950	1970
H1 Chassis height without air spoiler			2350	2350
Overall length with cargo box			5480	5995
Overall width with cargo box			1950/2000	1970/2000
Overall height with cargo box			2450	2450
H2Frame height		- laden	702	702
		-unladen	779	779
L5Recommendedinside body sizes	length	- without sleeper	3650	4200
	length	- with sleeper	3300	3850
	width		1810/1900	1810/1900
	height		400	400

Weights (kg)
Gross vehicle weight (GVW)	4495	4495
Complete vehicle kerbweight	2370	2400
Chassis kerbweight	2115	2135

Performance
Maximum speed (km/h)	110	110
Maximum grade ability (%)	35	35
Minimum turning diameter (mm)	12.1	14
Minimum ground clearance (mm)	210	210
Fuel consumption (L/100km)	11~16

Engine- EuroⅡ
Parameters		Features
Model 4DW93-84/490, 4-cylinder in-line, 2.54litrefor wheelbase 2800mm and 3360mm, diesel Rated power: 84 PS@3050rpm; Maximum torque:220Nm@1900~2100rpm CA4D32-10/498, 4-cylinder in-line, 3.168litrefor wheelbase 2800mm and 3360mm, diesel Rated power:102PS@3400rpm; Maximum torque:210Nm@1900~2100 rpm CY4100ZLQ, 4-cylinder in-line, 3.707litre for wheelbase 3360mm, diesel Rated power: 95 PS@3200rpm; Maximum torque:235Nm@1800~2000 rpm YN4100QBZL, 4-cylinder in-line, 3.298litre for wheelbase 3360mm, diesel Rated power: 110PS@3200rpm; Maximum torque:300Nm@1600~2000 rpm		Turbo-charging and Intercooling Electric controlflameout Electric heating for intake air Options: Air dryer Exhaust brake
Gearboxand Clutch	Axles		Braking System
WLY525 for 490 engine 5-speed manual control gearbox, Ratio: 1-5.5682-2.9863-1.6584-1.00 5-0.81 R1-5.011 Maximum input torque:250Nm Rated rotation speed:2600rpm Centre distance: 85mm	Front 1058,forging I-beam Drum brake		TypeAir brake system
	Front 1058,forging I-beam Drum brake		Service brake Dual-circuit air brake
	Rear 1058, pressed welding axle housing Drum brake Ratio: 5.571，5.375，4.875		Parking brake Spring energy brake
			Auxiliary brakeExhaust brake(Option)
	Suspension		Wheels &Tyres
	Front Semi-elliptical leaf springs with shock absorbers		Tyres 6.50R16LT
Clutch Φ275 diaphragm spring clutch, single plate			Wheels 5.50-16
			Option:
	RearSemi-elliptical leaf springs with shock absorbers		tyres 7.00R16LT
WLY535 for 498/4100 engine 5-speed manual control gearbox, Ratio: 1-5.0572-2.6093-1.565 4-1.00 5-0.764 R1-4.575 Maximum input torque:350Nm Rated rotation speed:2600rpm Centre distance: 100mm			Wheels 6.00-16
			Frame
	Fuel Tank		Frame
	Capacity 80Litre		MaterialHigh tensile steel
	Type Aluminum,lockable		Section 170 x 60 x 5mm
	Option 120 Litre for 3360 wheelbase		Frame widthFront 720mm / rear 800mm
	Electrical System		General Equipment
Clutch Φ300 diaphragm spring clutch, single plate	Voltage 24V		Fuel filter with water separator
	Batteries2 x 12V,80Ah		Sun visor
	Alternator28V/35Afor490and4100		Roof flap
Steering system	55Afor498		Reversebuzzle
Power steering	Starter 4.5KW for 490 and YN4100QBZL 4.0KW for 498 3.7KW for CY4100ZLQ		Battery main switch
Adjustable steering wheel			Heating & ventilation system
Exhaust System			Radio+MP3
	Options:		Options:
	100Ah batteries		Electric power windows
Cylindrical muffler			Air conditioner
			Anti-lock braking system(ABS)
			Metallic paint (except white)
