Cabin

Driving type 4x2, Right hand drive

2080 cab, with two seats and one sleeper, with A/C, with wind deflector

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

7995×2500×2800

Wheel base (mm)

4500

Wheel track (front/rear) (mm)

1845/1796

Approach/Departure angle(°)

18/18

Weight in KGS

Tare Weight

5095

payload

8000

Front axles loading capacity

2700

Rear axles loading capacity

7200

Max. driving speed(km/h)

95

Engine

Brand

Cummins

Model

ISF3.8

Horse Power(HP)

154hp

Emission standard

Euro 2

Gearbox

WLY6T4, 6 forwards & 1 reverse

Fuel tank(L)

120L

Steering

Right hand drive

Tire

8.25R16 radial steel tires, 6 pieces with one spare

Brakes

Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Refrigerating System

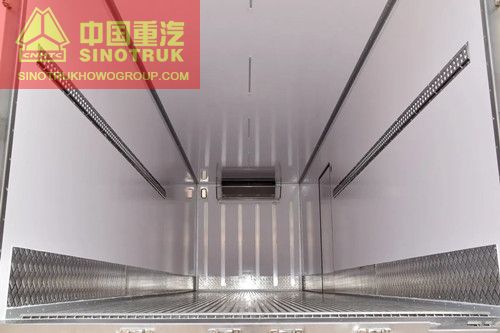

1, Box Size: 5750mm*2300mm*2300 mm.
2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm.
3, Working temperature is minus 18 Celsius degree. American brand Thermo King refrigeration unit.

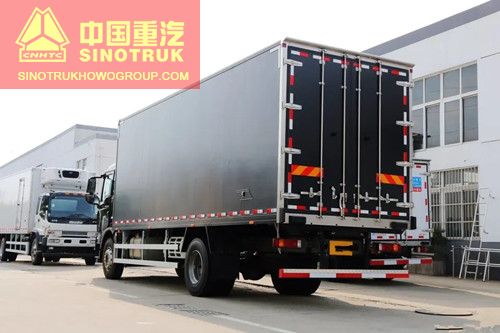

4, Rear door open
