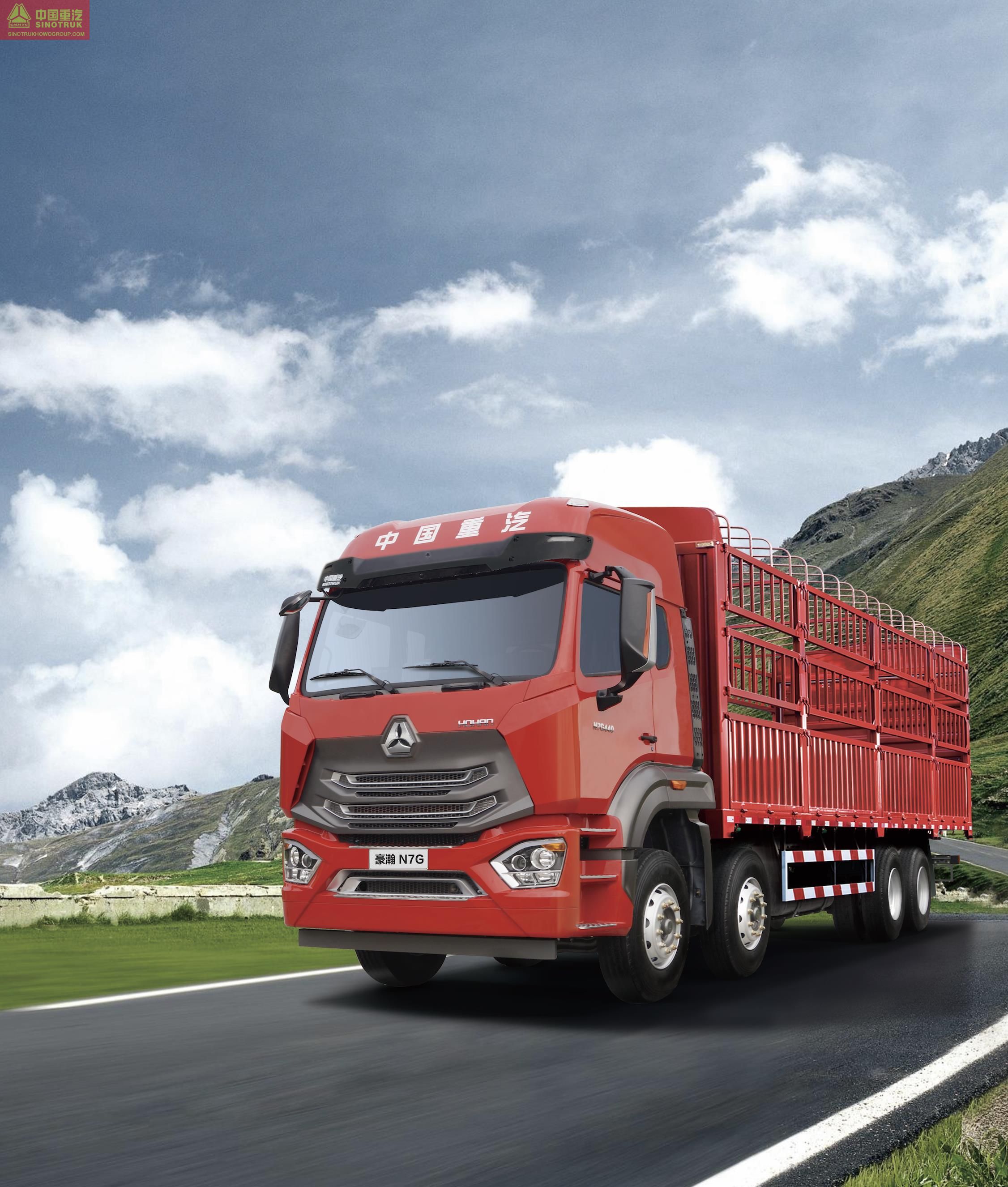

Hohan N7G Series ZZ5315CCYV4666F1 Box stake transport van
- Release time：
- Source：Sinotruk HOWO
The Haohan series Box stack transport van has the advantages of light weight, strong load-bearing capacity, strong power, high reliability, and strong climbing ability. Adopting the new "Haohan" luxurious and atmospheric cab, it is sturdy, durable, lightweight, and easy to maintain. Configure China National Heavy Duty Truck MAN engine, Weichai engine, and China National Heavy Duty Truck HW series transmission, and configure different types of axles according to user usage conditions to fully meet the needs of various users.
| Weight Parameter | Curb Mass (kg) | 13140,11950 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 12000 |
| Width (mm) | 2550 | ||
| Height (mm) | 3850,3950,4000,3900 | ||
| Wheel Base (mm) | 1800+4600+1350,1800+4575+1400 | ||
| Min. Ground Clearance (mm) | 400 | ||
| Performance Parameter | Max. Speed (km/h) | 102,89,79 | |
| Economic Speed (km/h) | 70～90 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 24 | ||
| Engine | Model | MC11.40-60,MC11.44-60,WP10H400E62，WP10.5H430E62 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1907/1000-1400，2107/1000-1400，1900/1200-1300，2000/1000-1400 | |
| Transmission | HW19712CL,HW25712XSTCL,HW25716XSTCL | |
| Clutch（mm） | 430 | |
| Rear Axle Type | MCY12BJG,MCY12JGK | |
| Rear Axle Ratio | 3.7，4.11，4.63 | |
| Fuel Tank (L) | 600 | |
| Frame Section（mm） | 280×80×8 | |
| Suspension (Front/Rear Spring) | 3/3/4，4/4/-,4/4/5,4/4/12,11/11/12 | |
| Tire | 11.00R20,12.00R20 18PR,12R22.5,295/80R22.5,315/80R22.5 18PR | |
