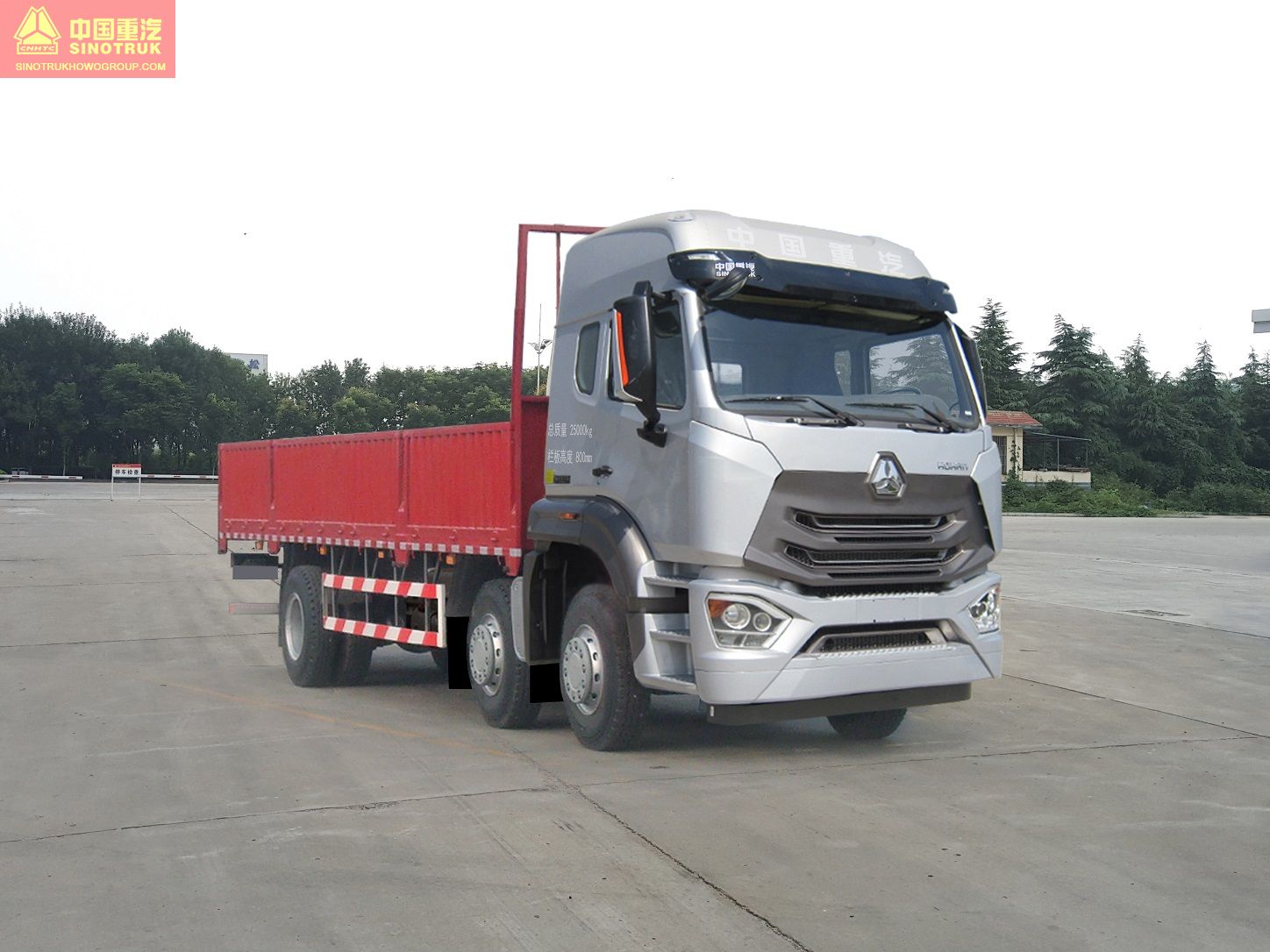

Hohan N5G Series ZZ1255M56C3E1 Lorry
- Release time：
- Source：Sinotruk HOWO
The Hohan series cargo trucks feature strong power, low fuel consumption, stable and reliable performance, and offer a variety of personalized configuration options; their newly designed cab is elegant, safe and comfortable. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 9730 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 11195,11995 |
| Width (mm) | 2496,2550 | ||
| Height (mm) | 3280,3320,3620 | ||
| Wheel Base (mm) | 1800+4800,1800+5600 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 102,79 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 24 | ||
| Engine | Model | MC07.24-50,MC07.28-50,MC07.31-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 925/1200-1800,1100/1200-1800,1230/1200-1800 | |
| Transmission | HW13710C2 | |
| Clutch（mm） | 440 Diaphragm spring clutch | |
| Rear Axle Type | 153casting | |
| Rear Axle Ratio | 4.875 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 850*280*80*(8+5) | |
| Suspension (Front/Rear Spring) | 4/4/-,4/4/1+-,4/4/5,4/4/9+6,9/9/9+6,左14右13/左14右13/9+6 | |
| Tire | 11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR | |
