howo dump truck for sale in china
- Release time：
- Source：Sinotruk HOWO

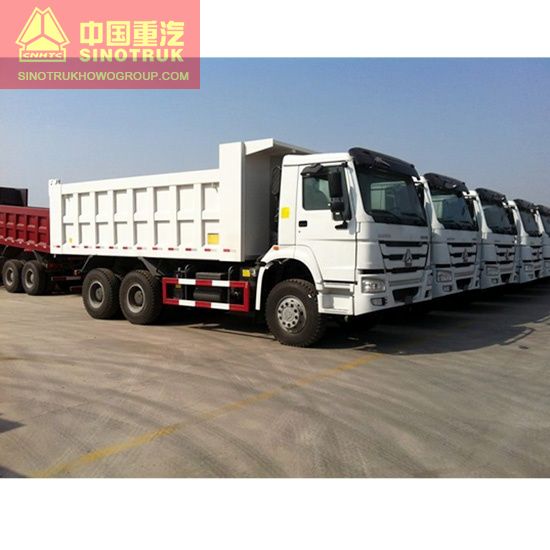

howo dump truck for sale in china
Our advantages:
1. We can provide you the best price;
2. We can provide you good after-sale service;
3. We have our own truck part department to serve you;
4. We can also provide you Shacman, Beiben, IVECO trucks for your choice;
Product main spec.
5. HW70 Cab without sleeping bed, HW76 Cab with one sleeping bed and HW79 Cab with two sleeping bed are optional.
|
Model |
ZZ3257N3647B |
|
|
Drive type |
6x4 |
|
|
Cab |
Type |
HW70 standard cabin without sleeping bed |
|
Equipments |
2rear window, mechanical clerestory, hydraulic suspension cab, hydraulic chair with seatbelts, hydraulic reversal cab, with USB, can play radio broadcasting and audio in MP3format, equipped with A/C |
|
|
Vehicle Main |
L x W x H |
8214x2496x3386 |
|
Wheel base(mm) |
3625+1350 |
|
|
Front/Rear overhang(mm) |
1500/1739 |
|
|
Approach/Departure(°) |
19/26 |
|
|
Weight |
Kerb mass (kg) |
12290 kg |
|
Total mass (kg) |
25000kg |
|
|
Engine |
Brand |
SINOTRUK |
|
Model |
WD615.69 |
|
|
Power(kw/HP) |
247/336 |
|
|
Displacement(L) |
9.726 |
|
|
Emission Standard |
Euro II |
|
|
Transmission |
Brand |
SINOTRUK |
|
Model |
HW19710 |
|
|
Control type |
Manual |
|
|
Gear shift |
10-forward and 2-reserve speeds |
|
|
Clutch |
Diameter(mm) |
430 |
|
Steering |
|
|
|
Axles |
Brand |
SINOTRUK |
|
Front axel |
HF9 |
|
|
Rear axel |
AC16 |
|
|
Tires |
Type(Standard) |
12.00R20 |
|
Dump Body |
Cargo Dimension (mm) |
5600x2300x1500 |
|
Thickness of body steel |
Floor8,side 6 |
|
|
Lifting Type |
T type middle tipping system |
|

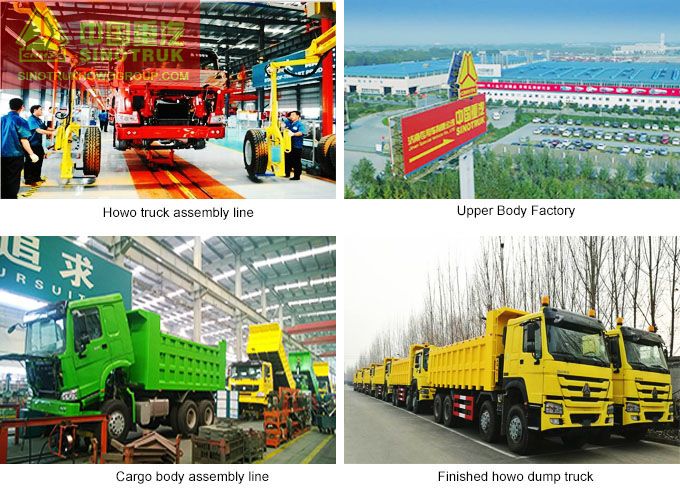

howo dump truck assembly line
3. howo dump truck body
