howo 12 wheeler dump truck
- Release time:
- Source:Sinotruk HOWO

howo 12 wheeler dump truck
| HOWO 8x4 371HP 12 wheeler dump truck | |
| Truck Model | ZZ3317N4867A |
| Cargo Body Size (LxWxH) | 8500x2300x1500 mm |
| Lifting Type of Carriage | Front Lifting. Chinese cylinder Ø180 |
| Overall dimensions (LxWxH) | 11500*2496*3450 mm |
| Approach angle/Departure angle(°) | 19/24 |
| front/rear suspension (mm) | 1500/1995 |
| wheel base (mm) | 1800+4800+1350 |
| Max speed(km/h) | 75 |
| Vehicle Curb weight(kg) | 15490 |
| Gross mass (kg) | 31000 |
| Engine | WD615.47, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| 371 HP | |
| Euro2 | |
| Transmission/Gear box | HW19710, 10 speeds forward ,2 reverse |
| Brake system | Service brake:Dual circuit compressed air brake |
| Parking brake:spring energy, compressed air operating on rear wheels | |
| Auxiliary brake:Engine exhaust brake | |
| Steering system | 8118,hydraulic steering with power assistance |
| Front axle | HF 9,drum |
| Driving axle | HC16,double reduction |
| Tire | 12.00R20,radial tyres; option:12.00-20 |
| Clutch | φ430 diaphragm spring clutch,hydraulic control air power assisted |
| Cab | HW76,one bed, with A/C VOLVO technology ,comfortable cab. 4-point support floating suspension and shock absorbers, up/down and front/back adjustable steering wheel, VDO instrument and control module,safety belt , air horn,outer sun visor. |
| Electric system |
Battery:2x12V/165Ah; Alternator:28V-1500 KW; Starter:7.5 Kw/24 V; |

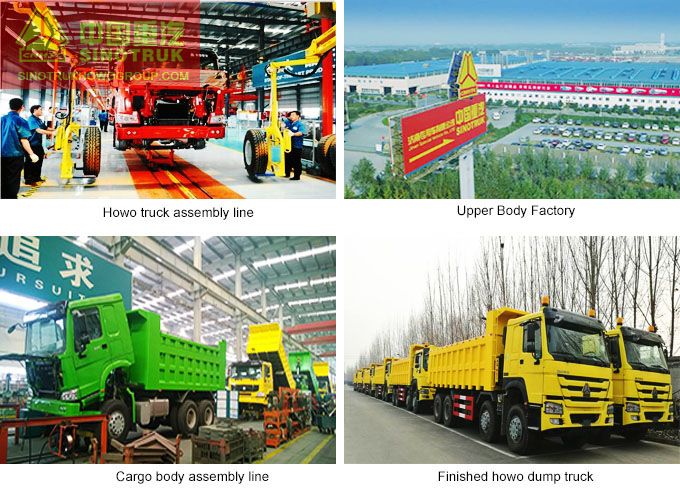

howo dump truck assembly line

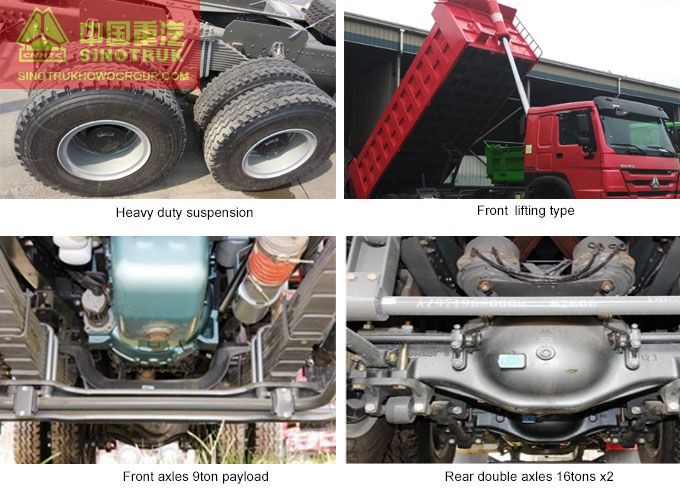

3. howo dump truck body
