Cnhtc 40 Ton Dump Truck For Sale
- Release time：
- Source：Sinotruk HOWO

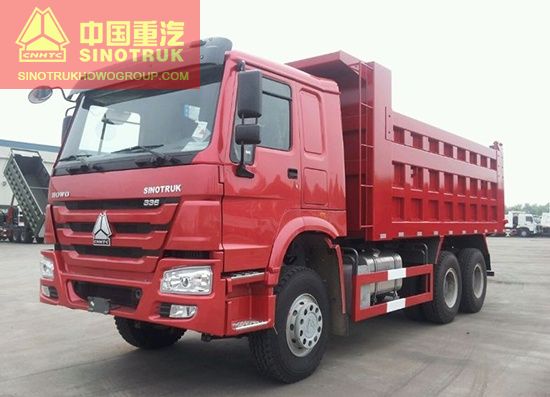

Cnhtc 40 Ton Dump Truck For Sale
|
Truck Model |
ZZ3257N3847A |
|
|
Truck Brand |
SINOTRUK –HOWO |
|
|
Dimension(Lx W x H)(unloaded)(mm) |
8614x2496x3450 |
|
|
Cargo body size(L*W*H, mm) (mm) |
5600x2300x1500
|
|
|
Cargo thickness(mm) |
Bottom:8mm, Side:6mm |
|
|
Lift type of Carriage |
middle lifting |
|
|
Approaching angle/Departure angle(°) |
19/26 |
|
|
Overhang(front/rear) (mm) |
1500/1739 |
|
|
Wheel base (mm) |
3825+1350 |
|
|
Max speed(km/h) |
75 |
|
|
Maximum gradeability (%) |
40 |
|
|
Minimum ground clearance(mm) |
314 |
|
|
Minimum turning circle (m) |
20 |
|
|
Curb weight(kg) |
12290 |
|
|
Loading Weight(kg) |
30000 |
|
|
Fuel tanker capacity(L) |
300 |
|
|
Fuel consumption(L/km) |
23L/100 km |
|
|
Clutch |
Single-plate dry clutch Φ430mm |
|
|
Engine Model (Steyr technology,made in China)
|
Fuel type |
Diesel |
|
Horse Power, max(kw/rpm) |
371hp |
|
|
Emission |
EURO II |
|
|
Model |
WD615,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection |
|
|
Bore |
126mm |
|
|
Stroke |
130mm |
|
|
Compression ratio |
29.8hp/l |
|
|
Specific fuel consumption |
195g/kwh |
|
|
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
ZF8118 hydraulic steering with power assistance |
|
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
|
|
Tyre |
12.00R20 |
|
|
Electrical system
|
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
|
Cabin |
HW76cabin, one sleeper, with air conditioner |
|
