Outline dimension(mm)

10500 × 2500× 3400

Product weight(kg)

9980

Rated loading weight(kg)

35000

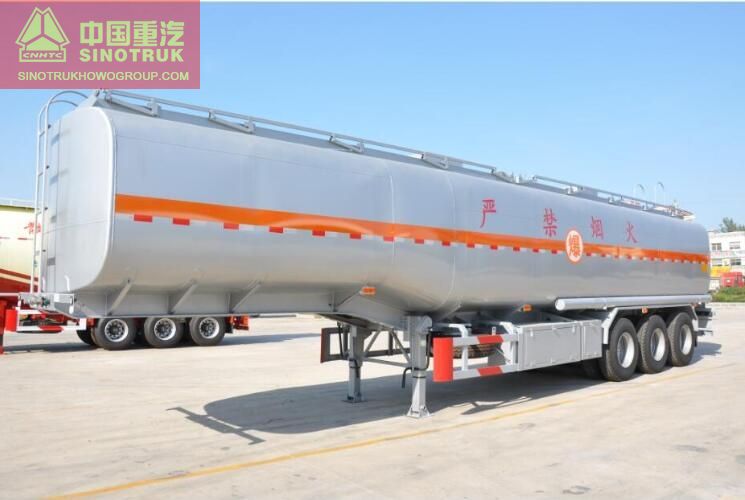

Tank

Tank shape

Ellipse shape uniform section

Volume and Storage

35000L

Shell cover

Steel 6.0/Q235B orbiculate shape

Tank material

Steel Plate 5.0/Q235B

Wave plate

Steel plate 4.0/Q235B orbiculate shape

Parts

Manhole

Aluminum anti-explosion manhole DN100

Sea valve

4 inch China made aluminum air-controlling sea vale 1 piece for each storage

Oil discharging pipeline

3 inch aluminum pipe

Oil discharging valve

3 inch China made stainless steel

Safety device

Wire plate for guiding electrostatic,conducting electrostatic towage

Mark

As customer standard

Other parts

Ladder

Assemble ladder at the rear of tank

Platform at the top of tank

Anti-sliding platform

Coaming at the top of tank

Aluminum

Soft pipe box

Carbon Steel type soft pipe box, installed at the both sides of tank

Oil transporting soft pipe

3 inch X 4 m length oil transporting soft pipe 2 pieces, matching two ends negative terminal connection ends

Tool box

As company standard,installed at the middle part of vehicle.

Mud fender

Rubber mud fender, installed at the top of wheel

Side protection

Installed at the both sides of vehicle

Rear fender guard

Aluminum, new type,installed at the rear of vehicle

Spare tyre

Steel ma, 1 piece

Fire extinguisher box

can hold 4 kg fire extinguisher

Electrical system

24 V electrical system,LED light.

Frame

King pin

90# JOST

Lifting leg

Linkage,28T

Suspension

BAOHUA equalizing suspension

Tyre

11R22.5

Rim

22.5×9.00

Axle

13T BPW

Braking system

WABCO4S/2M ABS

Paint Spraying

Outside surface

Sand blasting treatment

Bottom paiting

As company standard

Surface painting

As company standard

Surface color and mark

As customer requirement
