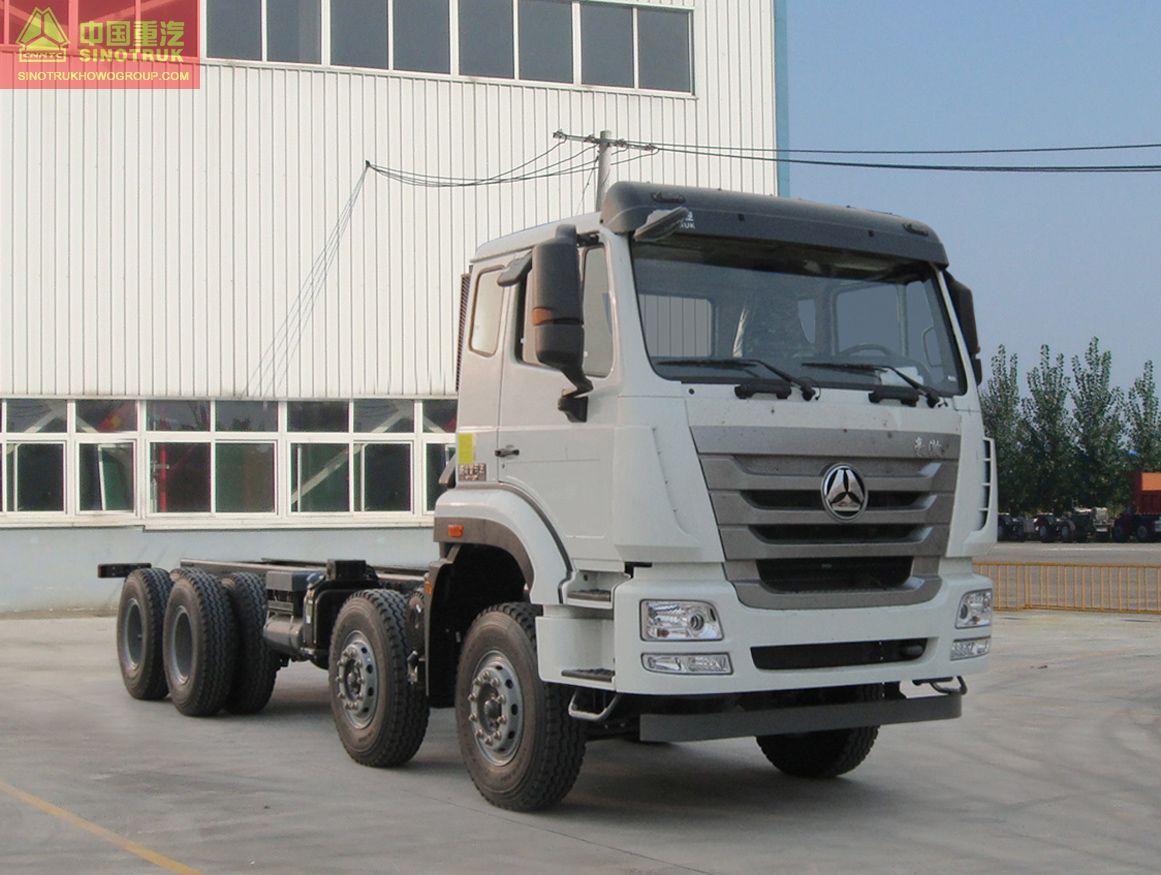

HOWO-G5X Series ZZ1315N306WE1 Cargo truck chassis
- Release time:
- Source:Sinotruk HOWO

The Hohan series cargo trucks feature strong power, low fuel consumption, stable and reliable performance, and offer a variety of personalized configuration options; their newly designed cab is elegant, safe and comfortable. It is suitable for long-distance standard load transp
| Weight Parameter | Curb Mass (kg) | 8900 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9075 |
| Width (mm) | 2520 | ||
| Height (mm) | 3210,3250 | ||
| Wheel Base (mm) | 1800+3050+1350,1800+3025+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 82 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 20.5 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100-1400,1700/1100-1400,1760/1100-1400 | |
| Transmission | HW19710、HW19712 | |
| Clutch(mm) | Heavy duty model B, model 21 | |
| Rear Axle Type | ST16、AC16 | |
| Rear Axle Ratio | 4.8、5.45 | |
| Fuel Tank (L) | 260 | |
| Frame Section(mm) | 300*80*(8+5)、300*80*(8+8) | |
| Suspension (Front/Rear Spring) | 4/4/-,4/4/5,9/9/-,9/9/12,11/11/-,11/11/12,左14右13/左14右13/12 | |
| Tire | 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR | |
