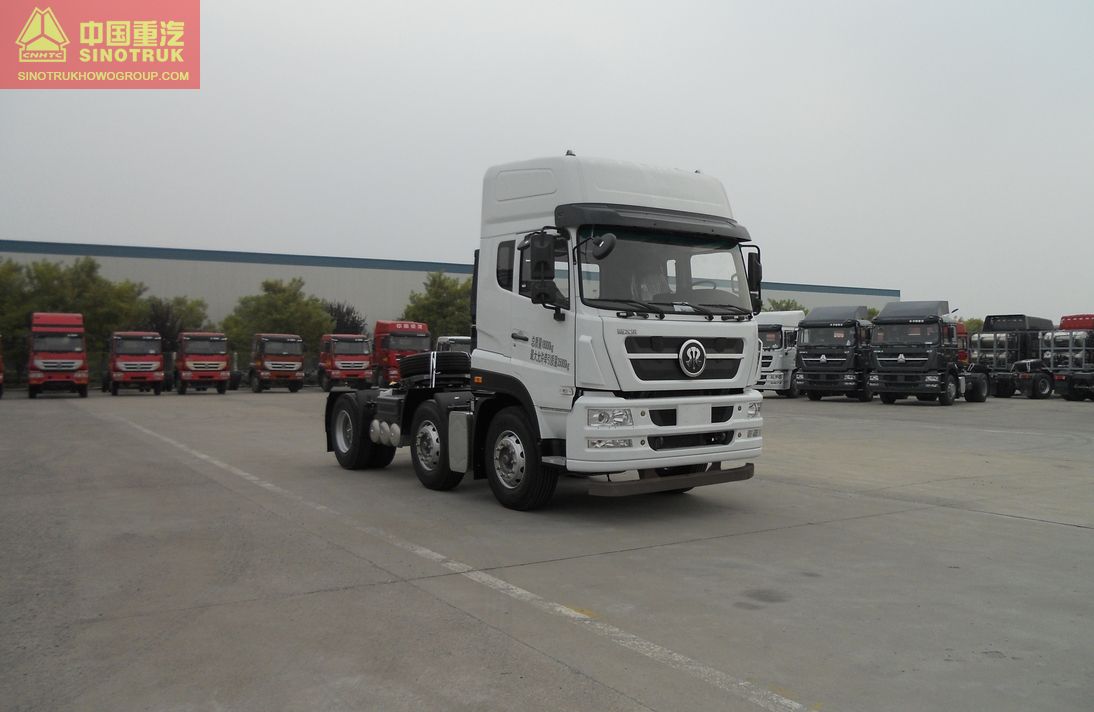

STYER-D7B Series ZZ4253N27C1E1N Tractor truck
- Release time：
- Source：Sinotruk HOWO
A mature product of CNHTC, this vehicle features a reliable structure, high carrying capacity, excellent power and stable performance, fit for different road uses. With an elegant, safe and comfortable cab, it is suitable for long-distance highway and expressway transport.
| Weight Parameter | Curb Mass (kg) | 7000,7600 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | 38000,38800 | ||
| Dimension Parameter | External Size | Length (mm) | 6695,6895,6910,7110 |
| Width (mm) | 2496 | ||
| Height (mm) | 3040,3600,3700,3765 | ||
| Wheel Base (mm) | 1800+2500,1800+2700 | ||
| Min. Ground Clearance (mm) | 314 | ||
| Performance Parameter | Max. Speed (km/h) | 101 | |
| Economic Speed (km/h) | 82 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 18 | ||
| Engine | Model | D10.31-50 D10.34-50 D10.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 226/1900 247/1900 274/2000 | |
| Transmission | HW19712 | |
| Clutch（mm） | CH430-21 | |
| Rear Axle Type | ST16 | |
| Rear Axle Ratio | 3.93 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 270 | |
| Suspension (Front/Rear Spring) | 3/3/5,3/3/9+6,3/3/-,3/3/2+-,4/4/5,4/4/9+6,4/4/-,4/4/2+-,9/9/9+6 | |
| Tire | 11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/80R22.5 16PR | |
