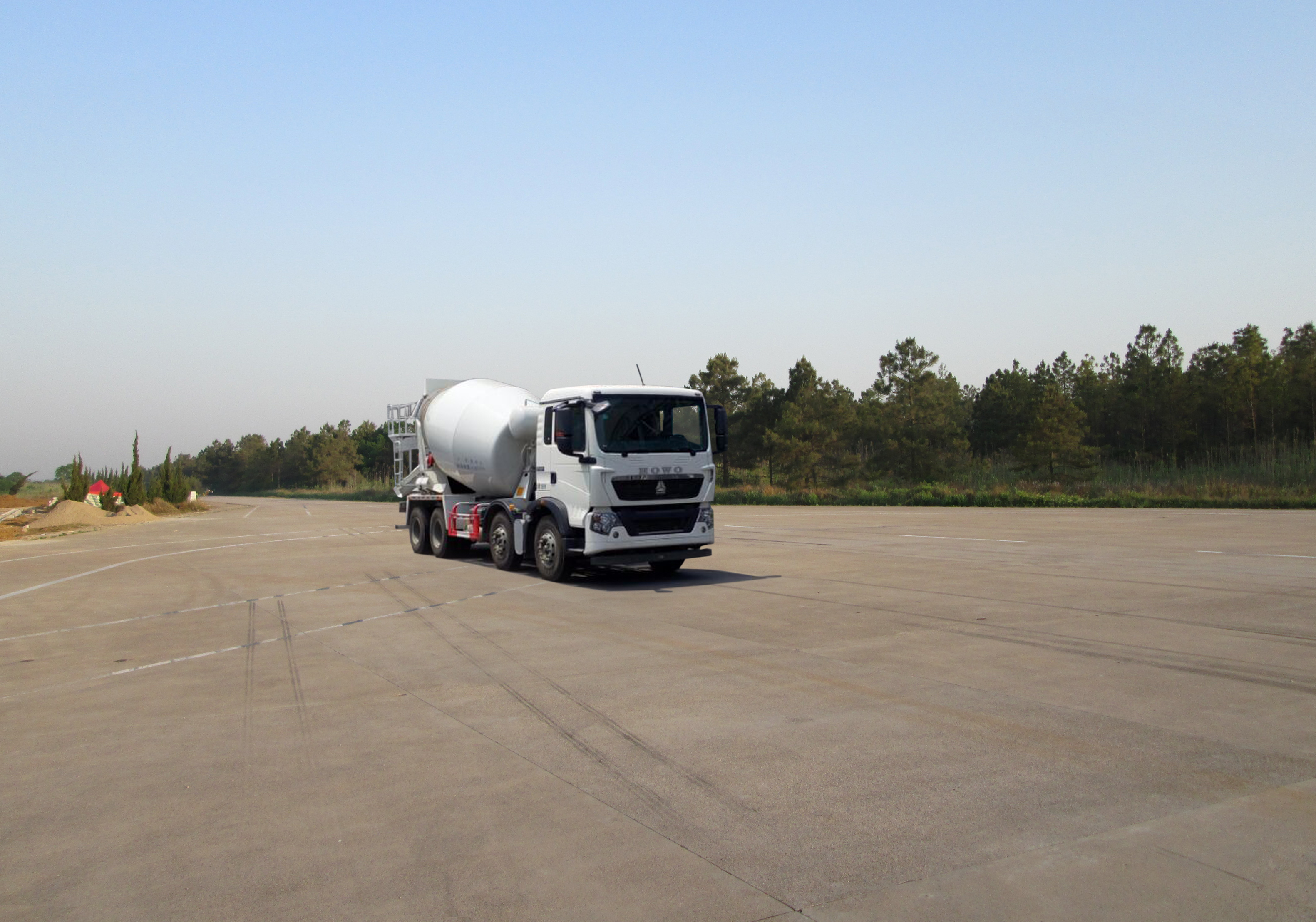

HOWO-T5G Series ZZ5317GJBN306GE1 Concrete transit mixer
- Release time：
- Source：Sinotruk HOWO
This vehicle is an all new generation of high-end medium and heavy duty truck developed by CNHTC based on the core assembly technology from MAN. It features outstanding fuel economy, light weight, superior power, and stable and reliable performance; meanwhile, it offers multiple personalized configuration options, with an elegant, safe and comfortable cab. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway. transport.
| Weight Parameter | Curb Mass (kg) | 13420 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9830 |
| Width (mm) | 2496 | ||
| Height (mm) | 3850 | ||
| Wheel Base (mm) | 1800+3050+1350 | ||
| Min. Ground Clearance (mm) | 260 | ||
| Performance Parameter | Max. Speed (km/h) | 82 | |
| Economic Speed (km/h) | 50～70 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 20 | ||
| Engine | Model | MC07.31-50,MC07.34-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1230/1200～1800,1250/1200～1800 | |
| Transmission | HW13710L | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | ST16 | |
| Rear Axle Ratio | 5.7300000000000004 | |
| Fuel Tank (L) | 300 | |
| Frame Section（mm） | Front 965 rear 850×300×80×(8+5) | |
| Suspension (Front/Rear Spring) | ||
| Tire | 11.00R20 | |
