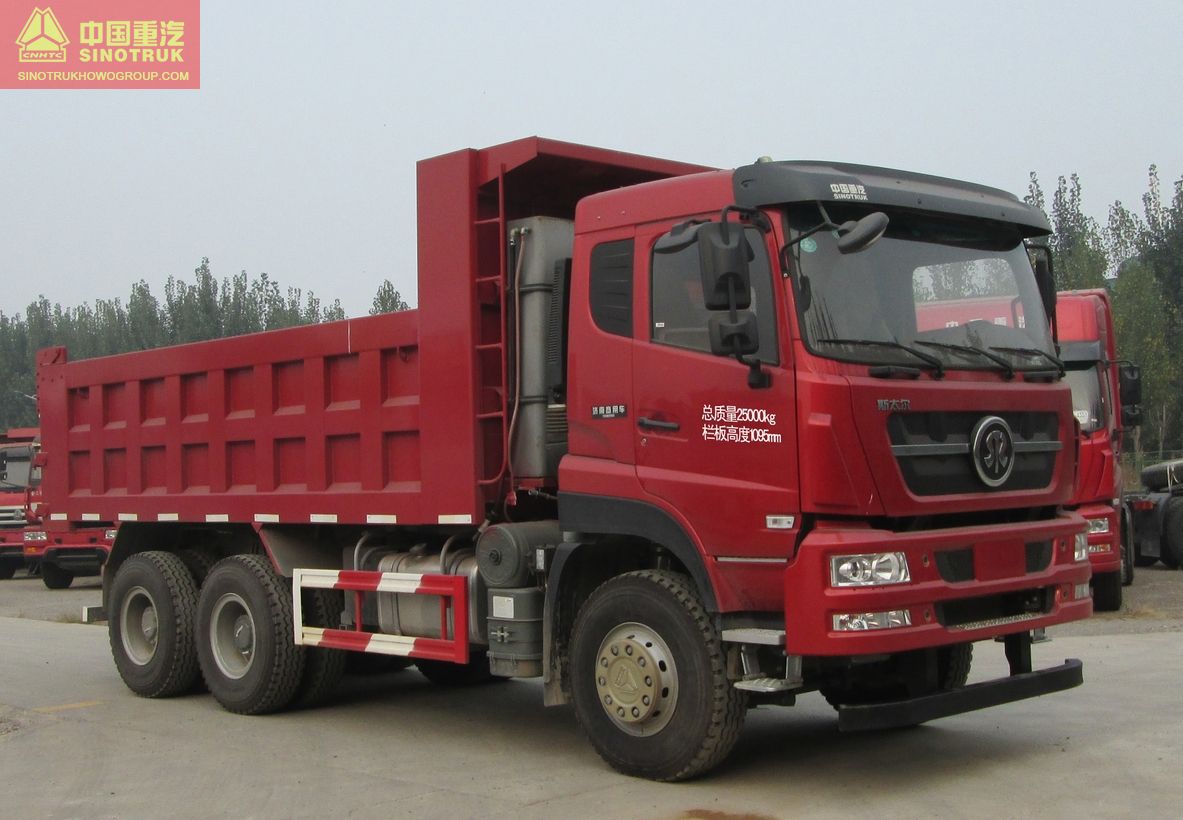

STYER-D7B Series ZZ3253N3841E1N Dump truck
- Release time：
- Source：Sinotruk HOWO
A mature product of CNHTC, this vehicle features stable structure, high carrying capacity, strong power, and reliable performance. Enjoying high recognition in the market, it meets the requirements for use in harsh enviroments such as construction sites and mining areas, suitable for short-distance earthwork and building construction.
| Weight Parameter | Curb Mass (kg) | 12020 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 8200,8400,8460,8660 |
| Width (mm) | 2496 | ||
| Height (mm) | 3500 | ||
| Wheel Base (mm) | 3825+1350 | ||
| Min. Ground Clearance (mm) | 314 | ||
| Performance Parameter | Max. Speed (km/h) | 82 | |
| Economic Speed (km/h) | 60 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 18 | ||
| Engine | Model | D10.28-50 D10.31-50 D10.34-50 D10.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 204/1900 226/1900 247/1900 274/2000 | |
| Transmission | HW19710 | |
| Clutch（mm） | CH430-21 | |
| Rear Axle Type | HC16 | |
| Rear Axle Ratio | 5.73 | |
| Fuel Tank (L) | 300 | |
| Frame Section（mm） | 300 | |
| Suspension (Front/Rear Spring) | 10/12，10/- | |
| Tire | 11.00-20,11.00R20,12.00-20 18PR,12.00R20 16PR | |
