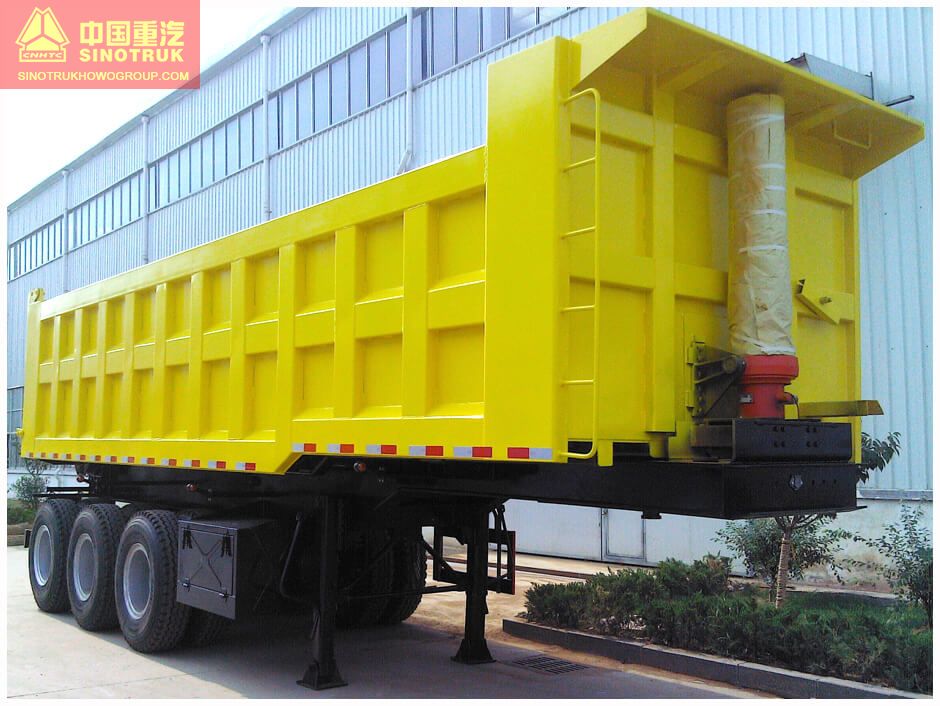

Tipping Dump Tipper Semi Truck Trailer
- Release time：
- Source：Sinotruk HOWO
Tipping Dump Tipper Semi Truck Trailer
|
Type |
|
dumping trailer |
|
Shipping Terms |
By containers or bulk cargo according to its size |
|
|
Delivery time |
Production Term 15 workdays for one set dumping semi trailer |
|
|
Weight: |
|
|
|
|
Tare Weight |
7.85T-8.5T |
|
|
Payload |
30T-60T(25m³--37m³) |
|
|
Axle Weight Load |
13T/16T per axle |
|
Specification: |
|
|
|
|
Axle |
Three, FUWA Brand |
|
|
Suspension |
mechanical suspensions |
|
|
King Pin |
Jost 50#/90# traction pin |
|
|
Dimensions |
1000-13000×2480/2500×3040mm(Outside) |
|
|
Rim |
9.00*22.5 Zhengxing Brand 12 pieces or other sizes |
|
|
Lifting system |
Four or five ø125lifting cylinders, one piece of ø140displacement cylinder |
|
|
Steel Spring |
10pieces |
|
Tire: |
|
|
|
|
Tire specs. |
11.00R22.5/12.00R22.5 |
|
|
Number of Tire |
12pieces |
|
|
Spare Tire Carriers |
2 pieces |
|
Frame: (specs. and materials) |
Main frame is height 400/500mm, |
|
|
|
Frame Beam |
Upper plate is 14mm, lower plate is14/16mm, middle is8/10mm side beam is 16# Usteel. Left side:3 or 4 pcs French door; Right side:3 or 4 pcshanging door.With19 pcs lock bar. |
|
|
Frame Floor |
The Thickness is 2.5/3mm flat bed |
|
Brake: |
|
|
|
|
Brake |
Kemi Brand of China |
|
|
Brake Chamber |
Two double and two single chamber( TKL brand ) |
|
|
ABS |
Kemi Brand of China(4S/2M) |
|
Electrical: |
|
|
|
|
Voltage |
24V |
|
|
Receptacle |
7 ways(7 wire harness) |
|
Light color: |
|
|
|
|
Side marker lamp |
Orange |
|
|
Rear lamp |
Red |
|
|
Turn signal lamp |
Orange |
|
|
Legs |
Jost D200T |
