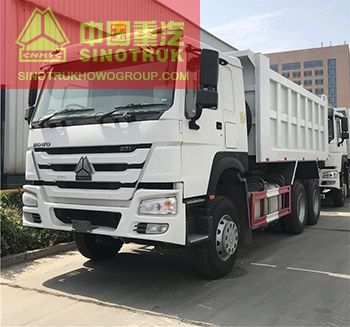

Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
- Release time：
- Source：Sinotruk HOWO
Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
| DUMP TRUCK | |
| Model | ZZ3257N4147W (Left Hand Driving) |
| Brand | SINOTRUK–HOWO |
| Dimension(L x W x H)(mm) | 8145x2496x3370 |
| Cargo body size (Lx W x H) (mm) | 5400x2300x1300 16 m3 |
| bottom:8mm, side:6mm | |
| Lifting type | Middle Lift |
| Approach/Departure angle(°) | 19/26 |
| Overhang(front/rear) (mm) | 1500/1739 |
| Wheel base (mm) | 3825+1350 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 12290 |
| Loading Weight(kg) | 30000 |
| Fuel tanker capacity(L) | 300 |
| Fuel consumption(L/km) | 20-40 L/100 km |
| Clutch | Single-plate dry clutch Φ430mm |
| Fuel type | Diesel |
| Horse Power | 336HP |
| Emission | EURO II |
| Engine | WD615.69, water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
| Transmission | HW19710,10 forwards and 2 reverse |
| Service brake | Dual circuit compressed air brake |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Egine exhaust brake |
| Model | 8118 hydraulic steering with power assistance |
| HF9 , Steering with double T-cross section beam | |
| HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | |
| Optional | |
| Tire | 12.00R20 |
| Cab | Right Hand Driving |
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
