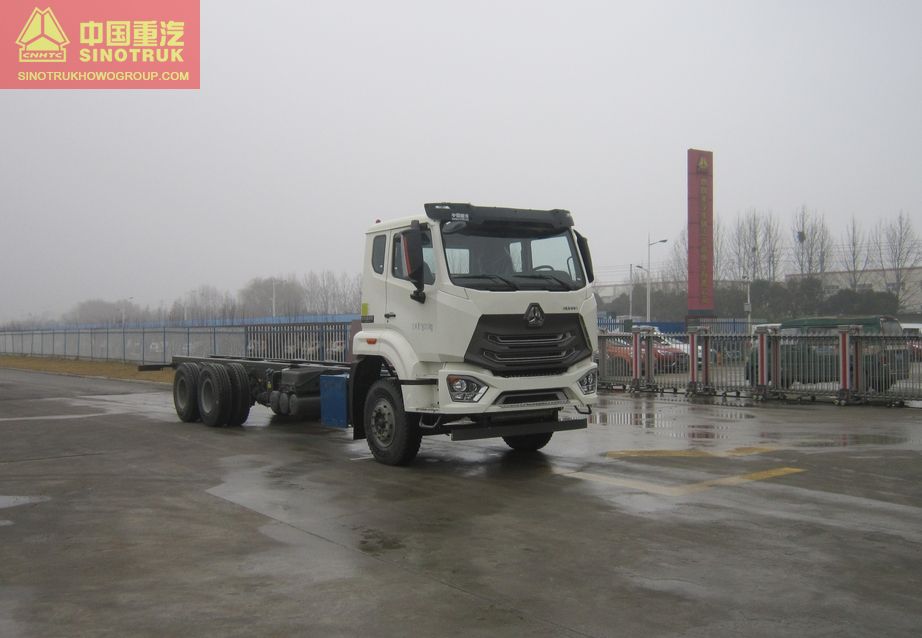

Hohan N5G Series ZZ1255V5846F1 Cargo truck chassis
- Release time:
- Source:Sinotruk HOWO

HOHAN series trucks have strong chassis power, low oil consumption, stable and reliable performance, have a variety of personalized configuration options, and are applicable to the refitting of all kinds of special vehicles. The "light luxury" new cab is luxurious, overwhelming, artistic, safe and comfortable.
| Weight Parameter | Curb Mass (kg) | 9340 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9525,9945,11690,8825 |
| Width (mm) | 2550 | ||
| Height (mm) | 3090,3550 | ||
| Wheel Base (mm) | 4325+1350,4300+1400,4600+1350,4575+1400,5825+1350,5800+1400,4925+1350,4900+1400 | ||
| Min. Ground Clearance (mm) | 400 | ||
| Performance Parameter | Max. Speed (km/h) | 102,89 | |
| Economic Speed (km/h) | 60~80 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 19,20,24,21 | ||
| Engine | Model | MC07.27-60 MC07.31-60 MC07.34-60 MC09.35-60 MC09.35B-60 MC09.38-60 WP8.350E61 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1060/1200-1800 1230/1200-1800 1250/1200-1800 1660/1100-1400 1510/1100-1400 1760/1100-1400 1400/1200-1600 | |
| Transmission | HW13709XSTC,HW15710C | |
| Clutch(mm) | 430 | |
| Rear Axle Type | MCY13JGK,MCY12JGK,MAT16ZG | |
| Rear Axle Ratio | 4.63,4.11,4.8 | |
| Fuel Tank (L) | 400 | |
| Frame Section(mm) | 300×80×8+5 | |
| Suspension (Front/Rear Spring) | 2/-,2/3,2/4,2/5,2/12,3/-,3/4,3/5,3/12,3/2+-,4/-,4/5,4/12,4/2+-,8/-,8/10,9/-,9/12,10/-,10/12 | |
| Tire | 11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/80R22.5 18PR/315/80R22.5 16PR | |
