Price of howo dump truck
1. Oil Saving---two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve
Improvement.Fuel consumption is about 35l per 100Km
2. Safety---Drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
3. Driving comfort---, 4 point suspension driving cab keeps the driver in comfortable
4. Reliability---all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in tough conditon.
5. Low application cost---low price spare parts reduce the cost of the repairing and maintanance,
|
Howo dump truck basic |
Made |
SINOTRUK |
|
Series |
HOWO |
|
|
Howo dump Model |
ZZ3257N3647A |
|
|
Howo dump Driving Type |
6x4 |
|
|
Howo dump Engine |
Howo dump Engine model |
WD615.47 |
|
Howo dump Engine Type |
6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine |
|
|
Howo dump Maximum output |
371 hp (247 Kw) at 2200 rpm |
|
|
Howo dump Displacement |
9.726 L |
|
|
Bore |
126 mm |
|
|
Stroke |
130 mm |
|
|
Compression ratio |
29.8 hp/l |
|
|
Specific fuel consumption |
195 g/kWh |
|
|
Howo dumpTransmission |
Model |
HW15710(Fuller technology) |
|
speeds |
10 speeds |
|
|
Howo dump Axle |
Front Axle |
9T |
|
Rear Axle |
16T |
|
|
Howo dump Fuel tank |
Aluminium fuel tank |
300 L capacity with locking fuel cap |
|
Howo dump Steering |
Model |
ZF power steering, modol ZF8098, hydraulic steering |
|
Howo dump Tyre |
Radial Tyre |
12.00R20 |
|
Howo dump Driver's Cab |
Flat roof cab with bed |
all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner |
|
Howo dump Dimensions mm |
Wheel base |
3600+1350 |
|
Overall dimmensions |
8145*2496*3386 |
|
|
Dimension of the rear dump body |
5600*2300*1500 |
|
|
Howo dump Performance |
Maximum driving speed (km/h) |
75 |
|
Maximum gradeability (%) |
40 |
|
|
Minimum ground clearance (mm) |
314 |
|
|
Minimum turning circle (m) |
20 |
|
|
Fuel consumption (l/100 km) |
28 |

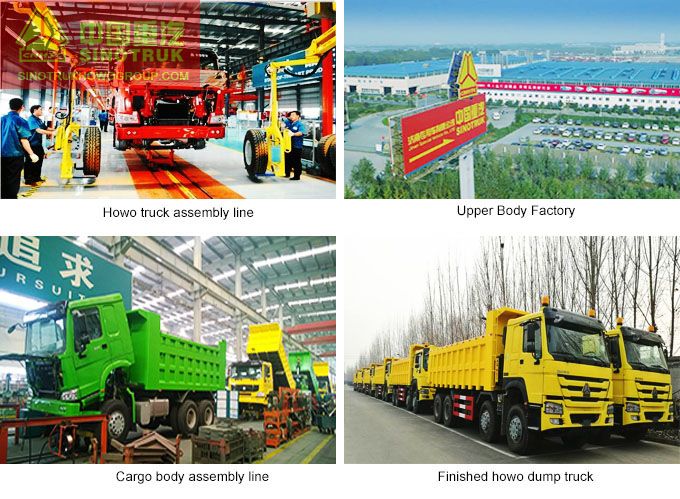

howo dump truck assembly line
howo dump truck body
