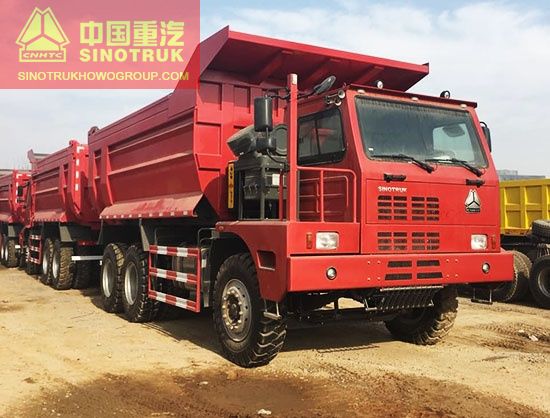

cnhtc mining truck
- Descriptions
To build china’s best mining dump truck!
cnhtc mining truck has an existing design idea .dump design it is entirely new model which according to the characteristics of the mining condition, it is suitable for severe applications such as strip mine, reclamation, steel works, construction site of hydropower station and dock. Engaged in the area of short distance transport business, belonging to non-announcement vehicles model.
Sinotruck power engine, powerful, and reliability. New materials, new structures engine flywheel and engine rear Suspension.
-
For more details, please read the following form.
|
Model No |
ZZ5707S3840AJ cnhtc mining truck |
|||
|
Cab |
HOWO7D Air conditioner |
|||
|
Engine |
Model |
WD615.47 |
||
|
Power(PS/RPM) |
EUROII 273/2200 |
|||
|
Displacement(L) |
9.726 |
|||
|
Transmission |
HW19710 |
|||
|
Front axle |
HF12 Max.loading:12000kg |
|||
|
Rear axle |
AC26 Max.loading:26000 kg |
|||
|
Steering gear |
ZF8098 |
|||
|
Electric system |
Voltage |
24V, negative grounded |
||
|
Batteries |
2*12V/135Ah |
|||
|
Starter power |
24V/5.4KW |
|||
|
Wheels and Tyres |
14.00-25 |
|||
|
Fuel tank (L) |
300 |
|||
|
Carriage Internal Dimensions(mm) |
Steel thickness of Carriage |
Floor:12 Side:8 |
||
|
Cargo Dimensions |
4300*2300*1600 |
|||
|
Weight(Kg) |
Gross Vehicle Weight |
100000 |
||
|
Cerb Weight |
29000 |
|||
|
Vehicle Dimensions (mm) |
Overall L*W*H |
8700*3300*4340 |
||
|
Wheelbase(mm) |
3625+1350 |
|||
|
Performance |
Maximum speed(km/h) |
63Km/h |
||
