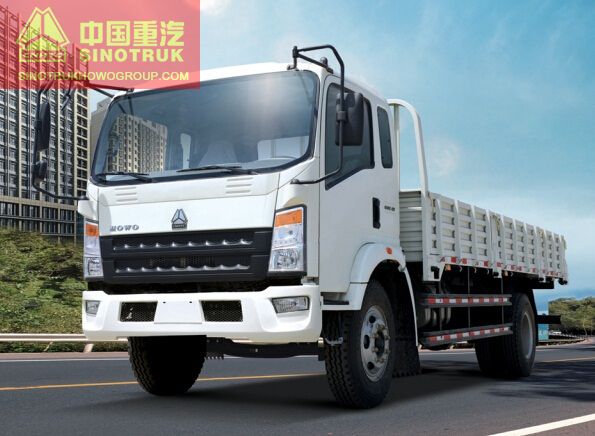

HOWO Light Truck common type

Release time：Oct 4, 2025
Source：Sinotruk HOWO

Dimensions (mm)
Vehicle Model			ZZ1107G381CD1	ZZ1107G421CD1	ZZ1107G451CD1
Cab width			2080	2080	2080
L1 Wheelbase			3800	4200	4500
L2Front overhang			1160	1160	1160
L4Rear overhang			1850	1980	2155
L6 Centre line of front axle to back of cab		- without sleeper	481	----	----
		- with sleeper	781	781	781
B1 Frontwheel track			1805	1805/1845	1805/1845
B3 Rear wheel track			1595	1610/1545	1610/1545
B4 Width across rear tyres			2010	2010	2010
L Chassis length			6810	7340	7815
B2 Chassis width			2180	2180	2180
H1Chassis height without air spoiler			2350	2350	2350
Overall length with cargo box			6995	7445	7995
Overall width with cargo box			2350	2350/2498	2350/2498
Overall height with cargo box			2450	2450/2650/2850	2450/2650/2850
H2Frame height		- laden	896	896	896
		- unladen	993	993	993
L5Recommendedinside box sizes	length	- without sleeper	5150	----	----
	length	- with sleeper	4850	5200	5750
	width		2150	2150/2300	2150/2300
	height		550	550/600	550/600

Weights (kg)
Gross vehicle weight (GVW)	9990	9990	11200
Complete vehicle kerbweight	4895	4995	5095
Chassis kerbweight	4225	4265	4295

Performance

Maximum speed (km/h)	107	107	107
Maximum gradeability (%)	35	35	35
Minimum turning diameter (mm)	15.5	16.8	18.5
Minimum ground clearance (mm)	210	210	210
Fuel consumption (L/100km)	18~23

Engine- EuroⅢ/Ⅳ
Parameters			Features
Model ISF3.8s4154T / ISF3.8s3154Tfor 2080 cab 3800wheelbase, 4-cylinder in-line, 3.76litre, diesel Rated power: 154PS@2600rpm, Maximum torque: 500Nm@1200~1900rpm ISF3.8s4168T / ISF3.8s3168Tfor 2080 cab other wheelbase, 4-cylinder in-line, 3.76litre, diesel Rated power: 168PS@2600rpm, Maximum torque: 600Nm@1300~1700rpm			Turbo-charging and Intercooling Electriccontrolflameout Electric heating for intake air Options: Selective Catalytic Reduction（SCR）for Euro Ⅳ
Gearboxand Clutch	Axles			Braking System
WLY6G120 for 154 or 168 Ps 6-speed manual controlgearbox Ratio: 1-6.7182-3.6783-2.153 4-1.406 5-1.00 6-0.786 R1-6.029 Maximum input torque: 700Nm Rated rotation speed: 2600rpm	Front1061, enhance forging I-beam Drum brake			TypeAir brake system
				Service brakeDual-circuit air brake
	Rear1080, pressed welding axle housing Drum brake Ratio: 4.875			Parking brake Spring energy brake
				Auxiliary brakeExhaustbrake(Option)
				Wheels &Tyres
	3 3Option	FrontVPD028QB, forging I-beam axle Disk brake
				Tyres 8.25R16LT
		RearMCY05, pressed welding axle housing, drum brake Ratio: 5.286		Wheels 6.50-16
Clutch Φ380 diaphragm spring clutch, single plate				Frame
	Suspension
Options:
ZF6S500 for 154PS 6-speed aluminum manual control gearboxRatio: 1-6.202-3.293-2.034-1.37 5-1.00 6-0.78R1-5.68 Maximum input torque: 500Nm Rated rotation speed: 2600rpm	Front Semi-elliptical leaf springs with shock absorbers			Material High tensile steel
				Section 215x 70 x 6 mm
	Rear Semi-elliptical leaf springs with shock absorbers			Frame width Front 800 mm / rear 800mm
				General Equipment
	Fuel Tank
	Capacity 120 Liter			Fuel filter with water separator
WLY6T53 for 154PS 6-speed manual control gearboxRatio: 1-8.802-5.573-3.294-2.11 5-1.54 6-1.00R1-8.18 Maximum input torque: 480Nm	TypeAluminum,lockable			25Liters AdBluetank for Euro Ⅳ
	Electrical System			Sun visor
				Roof flap
				Reversebuzzle
	Voltage 24 V			Battery main switch
	Batteries2x12V, 120 Ah			Heating & ventilation system
Clutch Φ350 diaphragm spring clutch， single plate for ZF and WLY6T53	Alternator Power 24V/70A			Air conditioner
	Starter Power 3.6KW			Air dryer
	Steering System			Radio+MP3
Exhaust System				Options:
Cylindrical muffler	Power steering			Electric power windows
Selective Catalytic Reduction for Euro Ⅳ（SCR）	Adjustable steering wheel			Anti-lock braking system(ABS)
				Metallic paint (except white)
