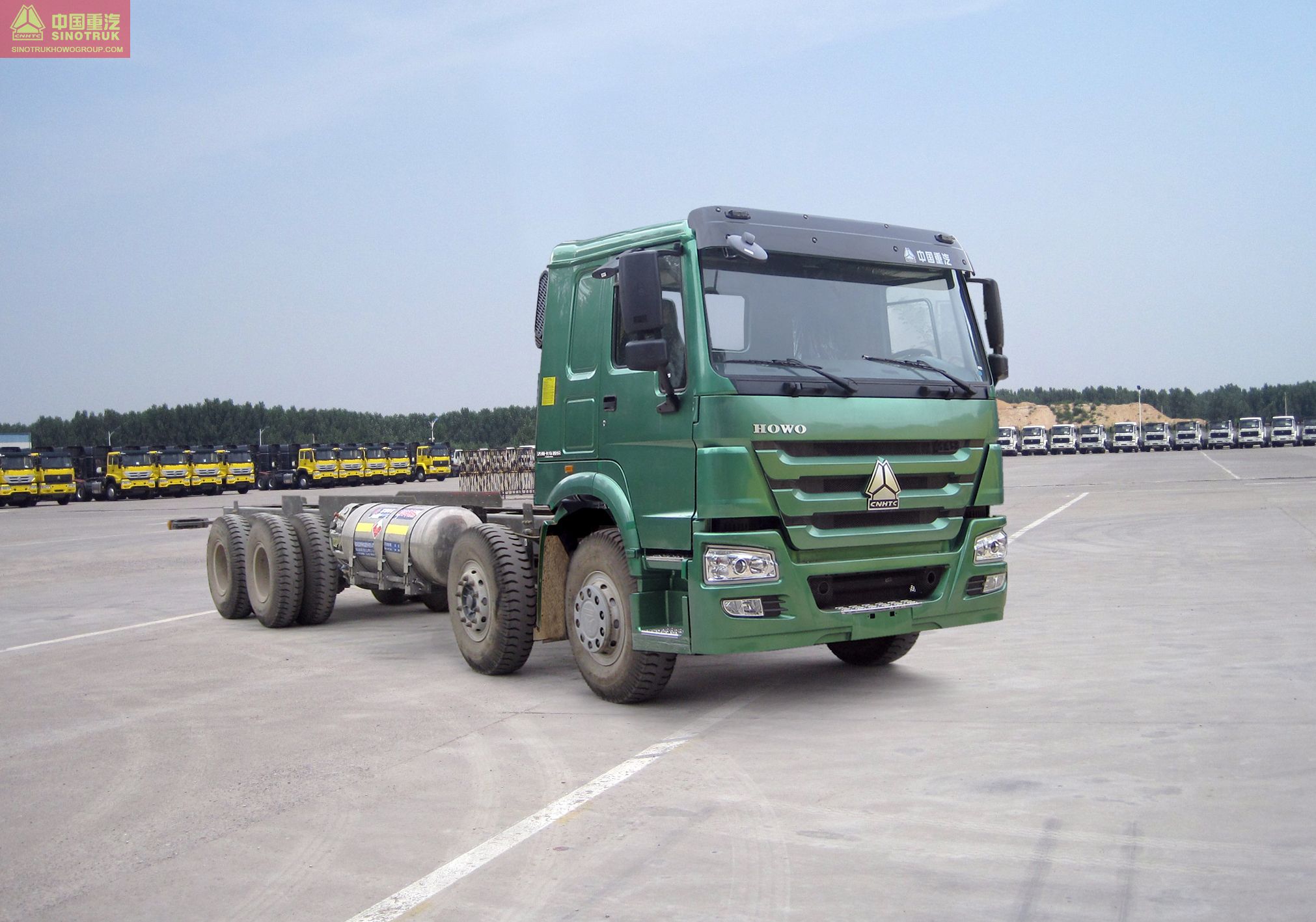

HOWO Series ZZ1317N3667E1L Cargo truck chassis
- Release time：
- Source：Sinotruk HOWO
Type 2 chassis, used for the retrofit of fire engines, wrecker trucks, oil field operation vehicles, cranes, concrete pump trucks, etc. With a proper structure and superior performance, it can meet the retrofit and use of various kinds of special purpose vehicles.
| Weight Parameter | Curb Mass (kg) | 10860 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9710,10175 |
| Width (mm) | 2496 | ||
| Height (mm) | 3125 | ||
| Wheel Base (mm) | 1800+3600+1350,1800+3825+1350 | ||
| Min. Ground Clearance (mm) | 314 | ||
| Performance Parameter | Max. Speed (km/h) | 82 | |
| Economic Speed (km/h) | 65～88 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 24 | ||
| Engine | Model | T10.32-50 T10.34-50 T12.34-50 T12.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1300/1200～1500 1350/1200～1500 1470/1200～1500 1650/1200～1500 | |
| Transmission | HW19710 | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | HC16 | |
| Rear Axle Ratio | 5.73 4.8 4.42 | |
| Fuel Tank (L) | 450 | |
| Frame Section（mm） | 300×80×8 | |
| Suspension (Front/Rear Spring) | 4/4/12,4/4/-,11/11/12,11/11/- | |
| Tire | 315/80R22.5 18PR/315/80R22.5 16PR,12.00R20 16PR,11.00R20,12.00-20 16PR,11.00-20 | |
