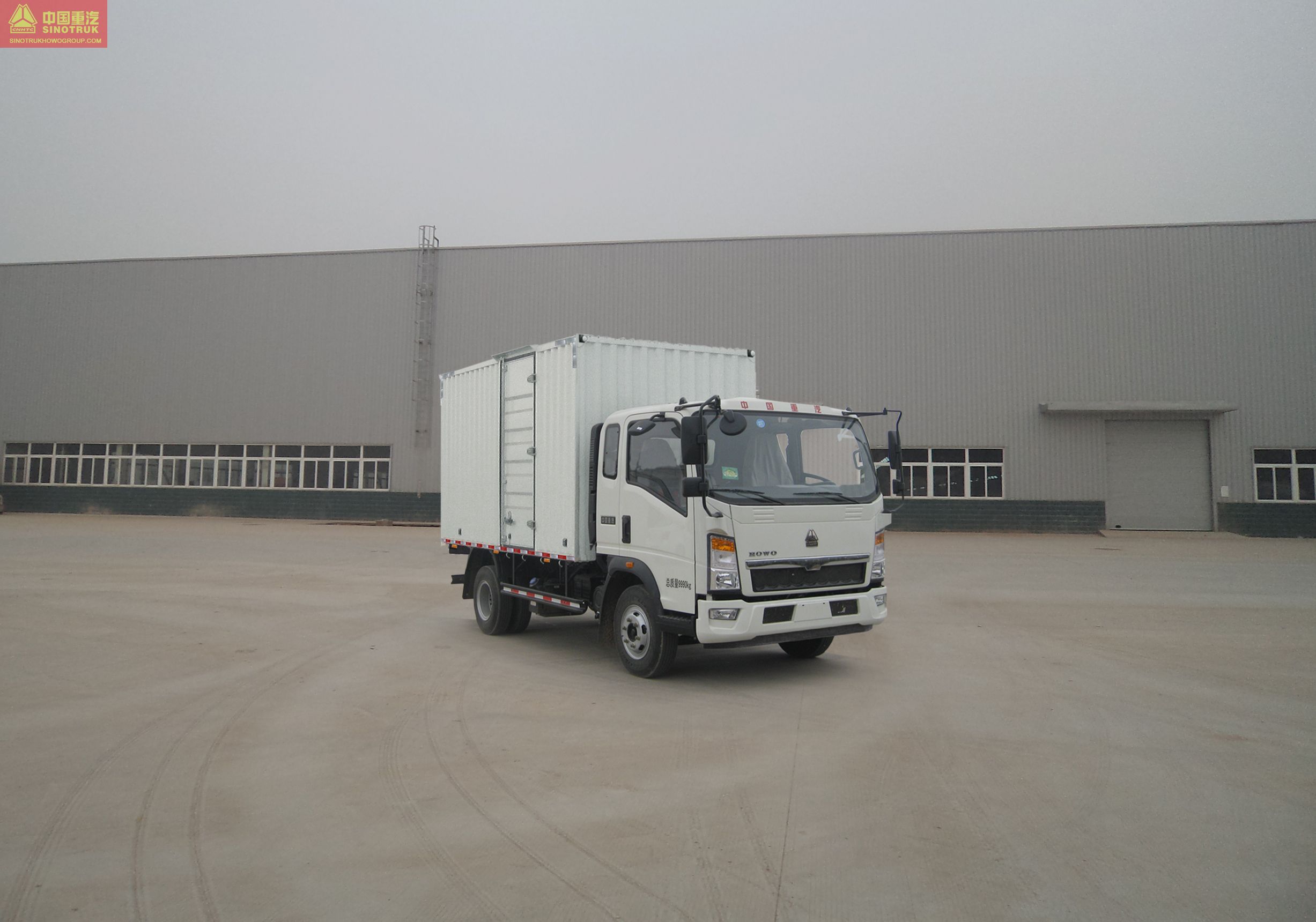

HOWO Light Duty Truck Series ZZ5107XXYF331CE1 Box stake transport van
- Release time：
- Source：Sinotruk HOWO
Known as the “King of the 10-tons”, this model is superior in power, low in fuel consumption, stable and reliable in performance, and offers a variety of personalized configuration options, with an elegant, safe and comfortable cab. Suitable for medium- and short-distance highway transport.
| Weight Parameter | Curb Mass (kg) | 5365 | |
| Full Loaded Mass (kg) | 9990 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 6050 |
| Width (mm) | 2180,2220,2370,2520 | ||
| Height (mm) | 2900,3150,3250,3400 | ||
| Wheel Base (mm) | 3280,3160 | ||
| Min. Ground Clearance (mm) | 210 | ||
| Performance Parameter | Max. Speed (km/h) | 95 | |
| Economic Speed (km/h) | 50-70 | ||
| Max. Grade Ability (%) | 25 | ||
| Min. Turning Diameter (m) | 13.8,13.4 | ||
| Engine | Model | YN38CRE1 CY4BK151 D25TCIE1 ISF3.8s5141 2.8s5148T |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 365/1600-2400,500/1400-1800,360/1600-2800，440/1200-2200,345/1500-2000 | |
| Transmission | WLY6TS55 | |
| Clutch（mm） | 350 | |
| Rear Axle Type | 1080铸造后桥 | |
| Rear Axle Ratio | 5.286 | |
| Fuel Tank (L) | 120 | |
| Frame Section（mm） | 195×65×6 | |
| Suspension (Front/Rear Spring) | 3/5+3,8/9+6,11/9+7,9/12+9,11/11+7 | |
| Tire | 8.25R16LT,8.25R20 14PR,9R17.5,9R22.5 | |
