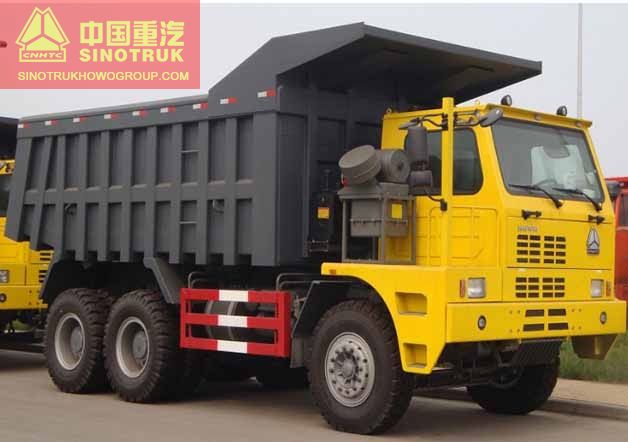

SINOTRUK 70tons mining trucks
- Release time:
- Source:Sinotruk HOWO

SINOTRUK 70tons mining trucks
|
Driving Type |
6x4 |
||
|
Chassis Model |
ZZ5707S3840AJ |
||
|
Engine |
Model |
WD615.47 |
|
|
Horsepower |
371 |
||
|
Type |
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
||
|
Displacement |
9.726L |
||
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Rigid fan |
|||
|
Cab |
HW7D single side cab, no bunk, left driving, air conditioner |
||
|
Clutch |
Φ430 diaphragm-spring clutch, hydraulically operating with air assistance |
||
|
Transmission |
HW19712 ,12 forward and 2 reverse |
||
|
Front Axle |
HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes. |
||
|
Steering |
German ZF8118 Steering Gear Box ,hydraulic steering with power assistance |
||
|
Rear Axles |
SINOTRUK AC26 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle. |
||
|
Brake System |
Service brake: dual circuit compressed air brake |
||
|
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
|||
|
Auxiliary brake:engine exhaust valve brake |
|||
|
Tyres |
Rims:10.0-25,12 hole-steel ;Tyres:14.00-25 Mining tyre with 1 Spare tire. |
||
|
Electrics |
Operating voltage:24V,negative grounded |
||
|
Starter:24V,7.5 Kw |
|||
|
Alternator:3-phase,28V,1500 W |
|||
|
Batteries:2x12 V,180 Ah |
|||
|
horn,headlamps,fog lights,brake lights,indicators and reverse light |
|||
|
Dimensions |
Overall length x width x height 8634x3296x3770 |
||
|
Wheel base 3800+1500 |
|||
|
Carriage |
Internal Dimensions(mm) |
5800x3100x1800 |
|
|
Steel thickness of Carriage(mm) |
Floor:16mm/Side:12mm |
||
|
Hydraulic Lift of Carriage |
Front lift |
||
|
Weight (kg) |
Kerb weight 20000 |
||
|
Gross vehicle weight 75000 |
|||
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer |
||
|
be suitable for long distance transportation of inland and ocean. |
|||
