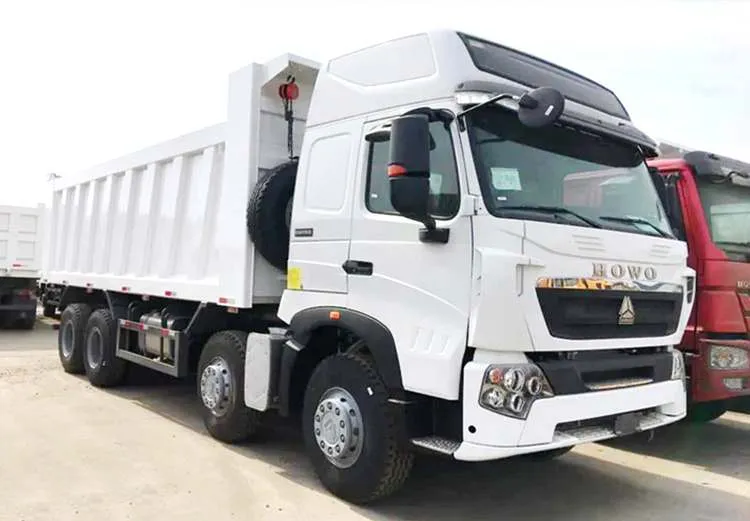

Howo 380hp 2000rpm Dump Truck Chassis parameters

Chassis model

ZZ3317N4267C1

Chassis brand

SINOTRUK

Overall dimensions

9850 X 2496 X 3115mm

Wheel base

1800+ 4200+ 1350mm

Front / rear wheel track

2022 /2022/ 2041/ 2041mm

Front/ rear suspension

1500/ 1000mm

Approach / departure angle

19/47°

Maximum speed

75km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

HW76 cab,a row and a half deluxe cab(with sleeping berth),allowable 3 passengers,

Color

White,other color is optional

Engine

Model

WD615.96C

Emission

Euro 3

Type

6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine

Rated power

380hp,rated power speed 2000rpm

Displacement

9726ml

Max.torque

1590N.m

Bore x stroke

126x130mm

Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Tire

Size

12.00R20 steel wire tire

Number

12+1 nos

Clutch

φ430 diaphragm clutch

Fuel tank

350L iron oil tank

Front axle

HF9

Rear axle

HC16

Drive form

8X4

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

gearbox  HW19710,10 speed forward 2 reverse.

Steering device

Power assisted steering,steering machine (domestic ZF technology)

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard
