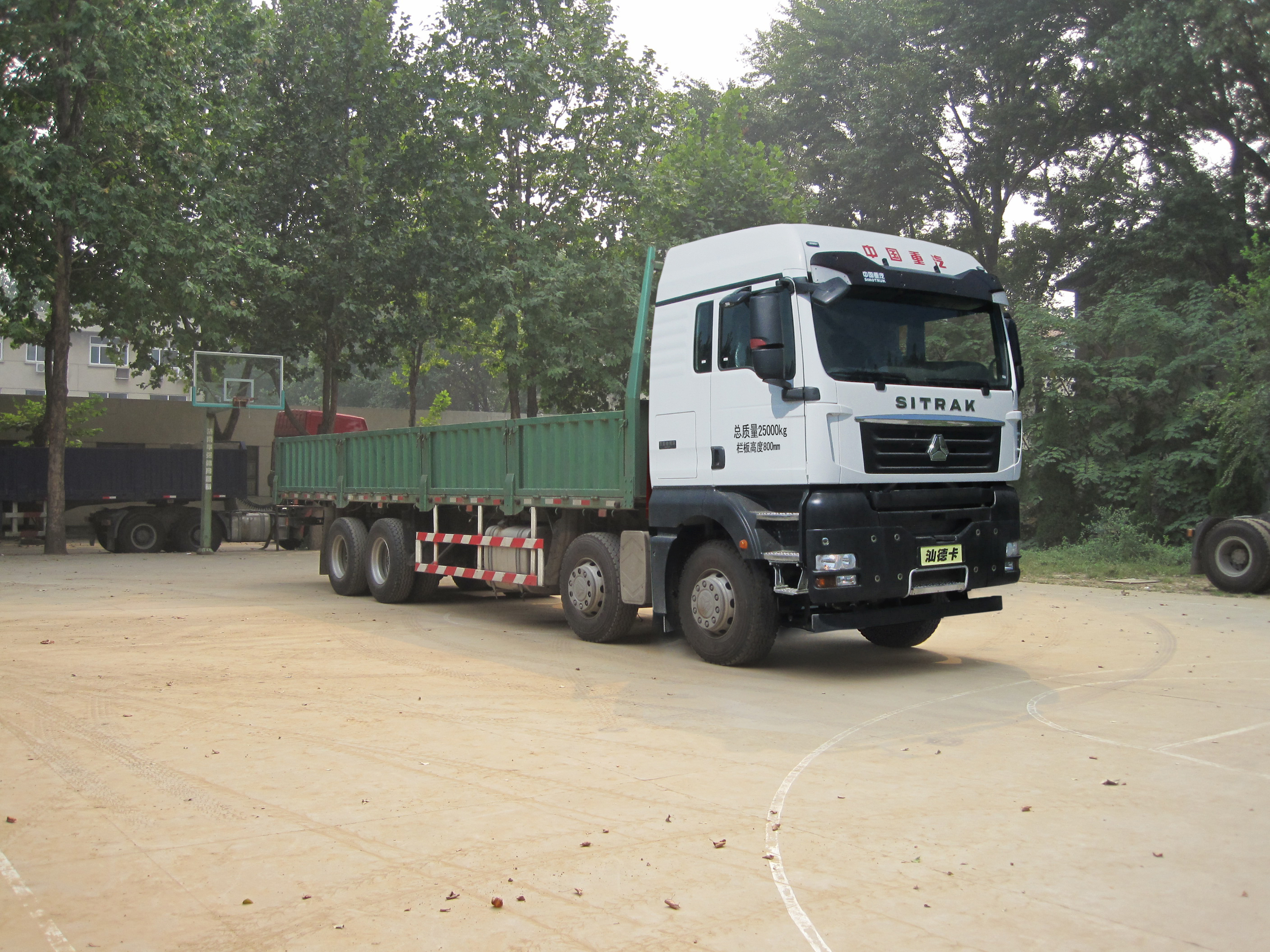

SITRAK-C6G Series ZZ1316N466WE1 Lorry
- Release time：
- Source：Sinotruk HOWO
The vehicle is a new generation of high-end heavy truck developed by CNHTC based on the core assembly technology from MAN; tall and mighty, it is like a king showing its dominance of the road, its power, stability, reliability, economy and comfort meeting the international level, its safety, reliability and intelligent levels aligned with international standards; also, it offers multiple personalized configuration options.
| Weight Parameter | Curb Mass (kg) | 10300 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 11670 |
| Width (mm) | 2496 | ||
| Height (mm) | 3410，3680 | ||
| Wheel Base (mm) | 1950+4600+1400 | ||
| Min. Ground Clearance (mm) | 238 | ||
| Performance Parameter | Max. Speed (km/h) | 101 | |
| Economic Speed (km/h) | 65～85 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 24 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50, |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100～1400,1700/1100～1400,1760/1100～1400 | |
| Transmission | HW12 | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY11 | |
| Rear Axle Ratio | 4.11(3.7,3.36,3.08） | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 300×80×8 | |
| Suspension (Front/Rear Spring) | 4/4/5,4/4/12,11/11/12,11/11/5 | |
| Tire | 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR | |
