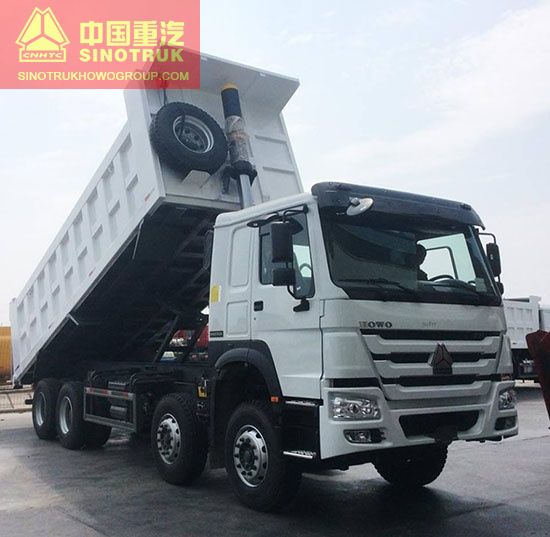

Hot Sale Sinotruk Howo 8x4 371 12 Wheel Sino Dump Truck
Howo 8x4 371 12 Wheel Sino Dump Truck--the most advanced and most superior new generation of heavy duty
truck in China, with proprietary brand and intellectual property right, was developed by CNHTC by applying
the world advanced heavy duty truck key technology aiming at the market at home and area markets overseas.
Howo 8x4 371 12 Wheel Sino Dump Truck adopts the advanced key assemblies which are reasonably connected by advanced technology. The arrangement of the complete vehicle is perfect; the main assemblies are harmonious,
unified and reliable, which makes the complete vehicle have better performance on power, economical efficiency,
reliabilityand environmental protection.
Sinotruk Howo 8x4 371dump truck is with luxury and great appearance; it is a combination of fortitude and
streamline, sturdiness and elegance. It aims at world heavy duty truck level on the ergonomic design like
comfortability,safety and accessibility.
|
Truck Model |
ZZ3317N4267 howo 8x4 12 wheel dump truck |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Driving Type |
RHD or LHD |
||||
|
Dimension(Lx W xH)(unloaded)(mm) |
11050x2496x3450 |
||||
|
Cargo body size (L*W*H, mm) |
8000x2300x1500, |
||||
|
Cargo body thickness(mm) |
bottom:8mm, side:4mm |
||||
|
Lift type of Carriage |
Front Lift |
||||
|
Approaching angle/Departure angle(°) |
19/19 |
||||
|
Overhang(front/rear) (mm) |
1500/2200 |
||||
|
Wheel base (mm) |
1800+4200+1350 |
||||
|
Max speed(km/h) |
75 |
||||
|
Curb weight(kg) |
15440 |
||||
|
Total weight(kg) |
40000 27.6m3 |
||||
|
Fuel tanker capacity(L) |
300L or 600L |
||||
|
Fuel consumption(L/km) |
20-40 L/100 km |
||||
|
Clutch |
Single-plate dry clutch Φ430mm |
||||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
|||
|
Horse Power, max(kw/rpm) |
371HP |
||||
|
Emission |
EURO II |
||||
|
Model |
WD615.47. water-cooled,four strokes,6 cylinders in line with water cooling,directly injection |
||||
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Steering system |
Model |
hydraulic steering with power assistance |
|||
|
Front axle |
HF9, Steering with double T-cross section beam Loading capacity: 9000kg |
||||
|
Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity:13000kg |
||||
|
Color |
Optional |
||||
|
Tire |
12.00R20 |
||||
|
Tire quantity |
12+1 spare=13 tires |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76 cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||||
