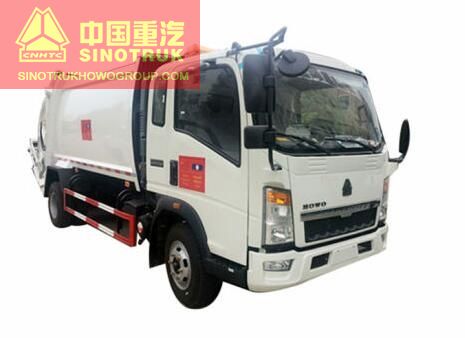

Sinotruk HOWO 4X2 Garbage Compactor Truck 3 Tons Garbage Truck
- Release time：
- Source：Sinotruk HOWO
Sinotruk HOWO 4X2 5m3 Garbage Compactor Truck 3 Tons Garbage Truck
| Driving type 4x2 | |||
| cabin | 2080 Standard cab, with threeseats,with A/C. Left Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. |
||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2450x3100 | |
| Wheel base (mm) | 4500 | ||
| Wheel track (front/rear) (mm) | 1798/1764 | ||
| Approach/Departure angle(°) | 27/20 | ||
| Weight in KGS | Tare Weight | 6400 | |
| Loading Capacity | 5000 | ||
| Front axles loading capacity | 1x3200 | ||
| Rear axles loading capacity | 1x8200 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | YUCHAI | |
| Model | YC4E140-20 | ||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 140 HP | ||
| Emission standard | Euro | ||
| Gearbox | WLY6T51 , 6 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Fuel tank (L) | 230 L | ||
| Tire | 8.25R20 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| BodyVolume | 8 CBM | ||
| Cycle Time of Filling(S) | ≤40 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤60 | ||
| Working Pressure(MPA) | 16 | ||
