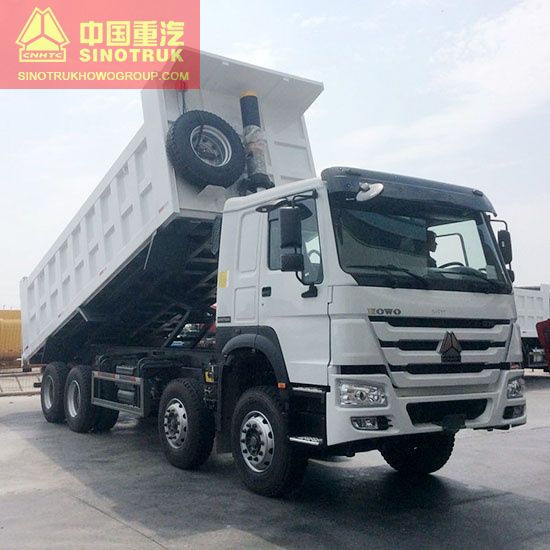

howo 380 dump truck

product name howo 380 dump truck

howo 380 dump truck

High technology make the truck much more perfect than other brand trucks!

Longer lifespan and low lost which can save you money and make you earn more!

High reliability can achieve run effeciency and much more loading!

High safety all around make your drive safe!

Many measures are taken to make sure the driver can drive easier and much more comfortable!

Chassis parameters
Chassis model		ZZ3317N4267C1	Chassis brand	SINOTRUK
Overall dimensions		9850X2496X3115mm	Wheel base	1800+4200+1350mm
Front/rear wheel track		2022/2022/2041/2041mm	Front/rear suspension	1500/1000mm
Approach/departure angle		19/47°	Maximum speed	75km/h
Chassis Manufacturer		China National Heavy Duty Truck Group Co.,Ltd
Cab	Configuration	HW76 cab,a row and a half deluxe cab(with sleeping berth),allowable 3 passengers,
	Color	White,other color is optional
Engine	Model	WD615.96C
	Emission	Euro 3
	Type	6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
	Rated power	380hp,rated power speed 2000rpm
	Displacement	9726ml
	Max.torque	1590N.m
	Bore x stroke	126x130mm
	Manufacturer	China National Heavy Duty Truck Group Co.,Ltd
Tire	Size	12.00R20 steel wire tire
	Number	12+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	350L iron oil tank
Front axle	HF9
Rear axle	HC16
Drive form	8X4
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	gearbox HW19710,10 speed forward 2 reverse.
Steering device	Power assisted steering,steering machine(domestic ZF technology)
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Dump truck structure parameters
Van body dimensions		7800X2300X1500mm	Side wall	6mm
Bottom plate		8mm	Van body material	Common steel
Lifting position		Front	Dumping direction	Rear
Oil Cylinder		Domestic φ180	Color and Logo	Optional
Standard configuration	Light duty:chassis,sub frame,van body side 4mm bottom 5mm,domestic middle lifting hydraulic cylinder φ198,common steel,two longitudinal beams,rectangular van body,single door Heavy duty:chassis,sub frame,van body side 4mm bottom 6mm,domestic front lifting hydraulic cylinder φ180,common steel,four longitudinal beams,rectangular van body,single door
Selective configuration	HYVA,PENTA cylinder,van body thickness(side 4mm to 6mm,bottom 6mm to 12mm),other requirements,truck crane,manganese plate and floor heating,side dumping.
