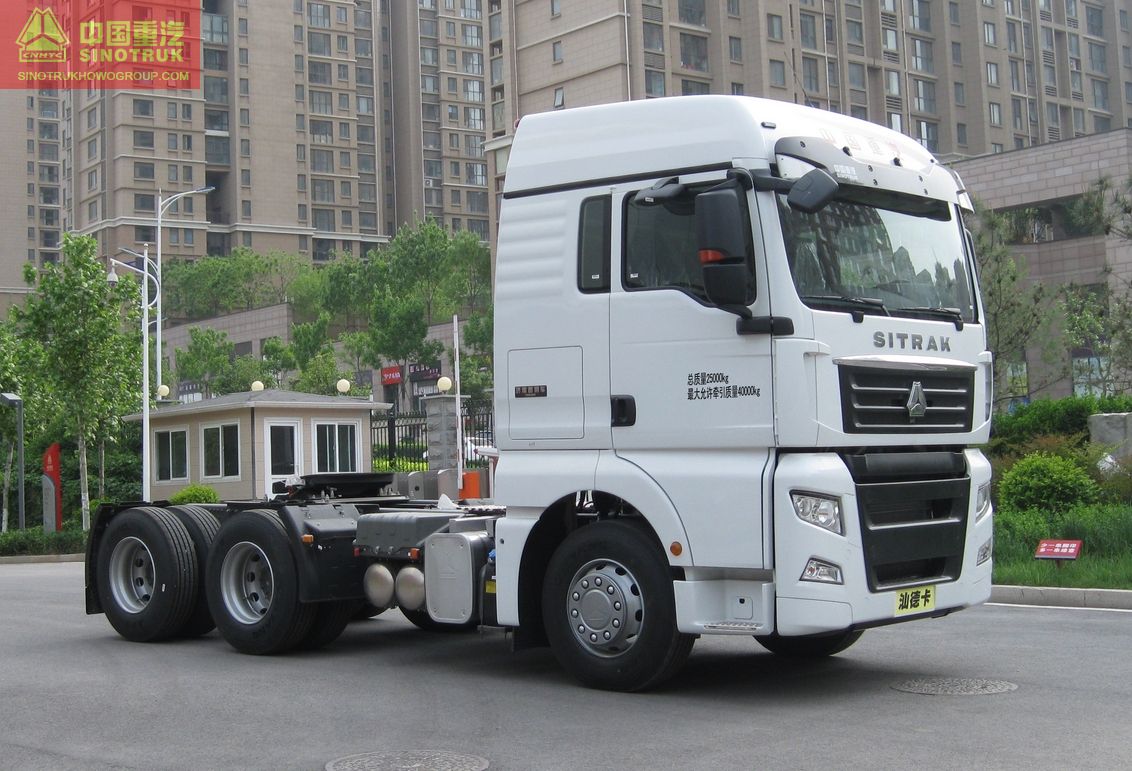

SITRAK-C6G Series ZZ4256N324WE1 Tractor truck
- Release time:
- Source:Sinotruk HOWO

The vehicle is a new generation of high-end heavy truck developed by CNHTC based on the core assembly technology from MAN; tall and mighty, it is like a king showing its dominance of the road, its power, stability, reliability, economy and comfort meeting the international level, its safety, reliability and intelligent levels aligned with international standards; also, it offers multiple personalized configuration options. Applicable to the drop and pull transport on trunk highways for medium-high level organized transport and high-end logistics
| Weight Parameter | Curb Mass (kg) | 8800 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | 40000 | ||
| Dimension Parameter | External Size | Length (mm) | |
| Width (mm) | |||
| Height (mm) | 3410,3620,3960,3980 | ||
| Wheel Base (mm) | 3200+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | ||
| Economic Speed (km/h) | 65~85 | ||
| Max. Grade Ability (%) | 40 | ||
| Min. Turning Diameter (m) | 15 | ||
| Engine | Model | MC09.34-50,MC09.36-50,MC09.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1600/1100~1400,1700/1100~1400,1760/1100~1400 | |
| Transmission | HW16 | |
| Clutch(mm) | φ430 | |
| Rear Axle Type | MCY11 | |
| Rear Axle Ratio | 3.36(3.08,3.7,4.11) | |
| Fuel Tank (L) | 600 | |
| Frame Section(mm) | 270×85×8 | |
| Suspension (Front/Rear Spring) | 3/5 | |
| Tire | 295/80R22.5 16PR,315/80R22.5 16PR | |
