HOWO-T7H Series ZZ4187V381HF1L Towing truck chassis
- Release time：
- Source：Sinotruk HOWO

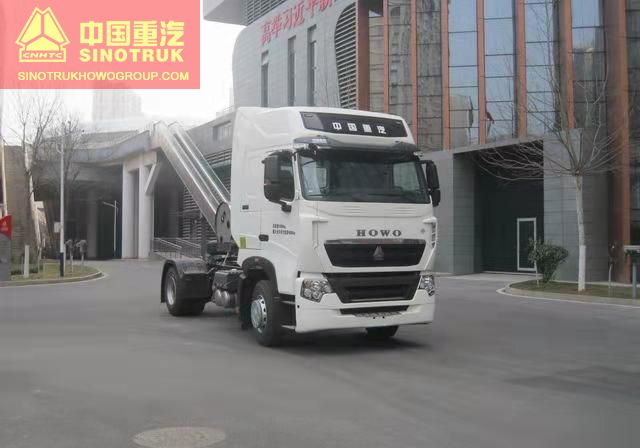

This vehicle is a new generation of high-end heavy truck product newly developed by SINOTRUK using MAN core assembly technology. Its appearance is high and overwhelming, showing the leadership of the King of Highway. Its excellent power, stable and reliable performance, economy and comfort reach the international level. Its safety, reliability and intelligence level are in line with international standards. There are several personalized configuration options. It is suitable for highly organized transportation and high-end logistics in trunk line swap trailer.
| Weight Parameter | Curb Mass (kg) | 7400,8100 | |
| Full Loaded Mass (kg) | 18000 | ||
| Rated Towing Mass (kg) | 34400,33700 | ||
| Dimension Parameter | External Size | Length (mm) | 6365,6965 |
| Width (mm) | 2496,2550 | ||
| Height (mm) | 3230,3565,3670,3745,3850 | ||
| Wheel Base (mm) | 3800,4400 | ||
| Min. Ground Clearance (mm) | 277 | ||
| Performance Parameter | Max. Speed (km/h) | 89,101 | |
| Economic Speed (km/h) | 70～90 | ||
| Max. Grade Ability (%) | 34 | ||
| Min. Turning Diameter (m) | 14 | ||
| Engine | Model | MT13.40-60，MT13.44-60， MT13.48-60，MT13.52-60 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1900/1000～1400,2100/1000～1400 2300/1050～1400,2500/1050～1350 | |
| Transmission | HW25712XSTCL,HW19712CL | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY13 | |
| Rear Axle Ratio | 3.36(2.85,3.08,3.7,4.11,4.63) | |
| Fuel Tank (L) | 1000 | |
| Frame Section（mm） | 270×85×8 | |
| Suspension (Front/Rear Spring) | 3/9+6,3/5,3/-,2/- | |
| Tire | 315/80R22.5,295/80R22.5,12R22.5 | |
