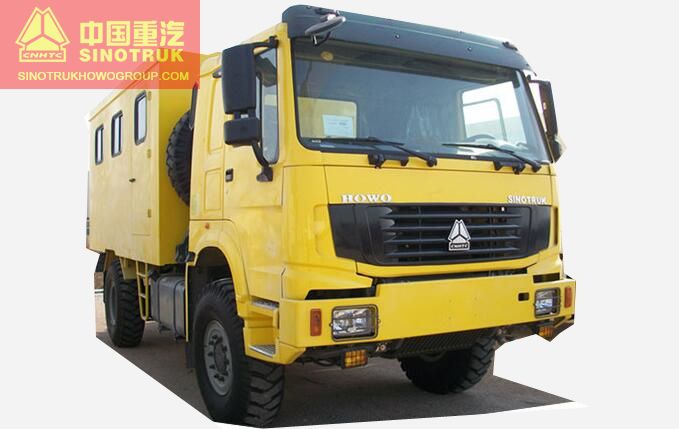

HOWO 4X4 Workshop Truck for Mobile Repair
- Release time：
- Source：Sinotruk HOWO
HOWO 4X4 Workshop Truck for Mobile Repair
parameters:
| SINOTRUK HOWO 4X4 CARGO TRUCK |
| MODEL: ZZ2167M4327 |
| ENGINE: 290 HP EURO 2 |
| GEAR BOX: HW15710C 10 SPEED |
| STEERING: ZF8118 20 MPA PRESSURE STEERING PUMP |
| DRIVING ALEX: ST16 |
| CAB: HW 76, LONGER CAB, ONE SLEEPER |
| WHEEL BASE: 4300 MM |
| TYRE: 12.00-20 BIAS TIRES 11UNITS |
| FRONT AXLE: STR |
| FUEL TANK: 400L |
| DIEMNSIONS: 7568X2496X3146 |
| SAFETY BELT. COLOR IS OPTIONAL |
| Equipments for Mobile Workshop QDZ5190YX | |||||
| Item | Description | Technical Data | Measurement | Weight | Qty. |
| 1 | Power Set (Generator) |
Model: HX-40GF | 1030kg |
3 | |
| Rated Power: 40/50KW | |||||
| Rated Voltage: 400/230V | |||||
| Rated Frequency: 50Hz | |||||
| Rated Current: 72A | |||||
| Output: 3-phase, 4-line | |||||
| 2 | Welding Set | Model: ZX7-400A | 27 kg | 3 | |
| Voltage: 380V | |||||
| Phase: 3 | |||||
| 3 | Air Compressor | 130kg |
3 | ||
| Voltage: 380V | |||||
| Rated Frequency: 50Hz | |||||
| Power: 3KW | |||||
| Pressure: 0.7MPa | |||||
| Capacity: 0.36M 3 /mm | |||||
| 4 | Drilling Machine ( ) |
Model: RDM-1600BNT Voltage: 380V |
57kg | 3 | |
| BoreRange: 16mm | |||||
| Power: 375W | |||||
| 5 | Work Table & Mechanic Vise | Size: 150mm | 3 | ||
| 6 | Double Head Bench Grinder (200 mm) | Voltage: 220V Power: 550W Rated Frequency: 50Hz |
3 | ||
| 7 | Oxygen Cylinder | Volume: 40L | 3 | ||
| 8 | Acetylene Cylinder | 3 | |||
| 9 | Gas Cutting & Welder Set | (2pcs),Welding torch (with welding mouth) ()(1pcs),Cut torch (with cut mouth) ()(1pcs) | 3sets | ||
| 10 | Working Bench | Steel Panel 2 | 1500*530*780 1430*440*680 |
6 |
|
| 11 | Mobile cable | 380V-415V;50m | 3 | ||
| 12 | Lifting Device | Roof Mounted, Retractable Cantilever, 2-Ton Chain Block2 | 3 | ||
| 13 | Folding chair | Steel | 6 | ||
| 14 | Wall type fan | 35W | 3 | ||
| 15 | Battery Quick Charger | DC Output : 12-24 V | 3 | ||
| 16 | Water Tank 0.5m3 | Plastic | 12 | ||
| 17 | Lather | CQ6132/XZ | 3 | ||
| 18 | Electric Winch | 17500LBS | 3 | ||
| 19 | Hand Disc Grinder () |
Z1E-FF-110, 220v, Φ110,1200W; 50HZ, 2 | 3 | ||
| 20 | Fire Extinguisher | MFZ/ABC4 4±0.08kg | 6 | ||
| No | Name | Specification | Quantity |
| 1 | Bow saw frame | 6sets | |
| 2 | Hacksaw blade | 300pcs | |
| 3 | Manual oil gun | 3pcs | |
| 4 | Hand electric drill | 220V 6.5MM, 230W,50HZ, J1Z-FF02-6A | 3sets |
| 5 | Pipe expansion ware | Φ3-19mm | 3sets |
| 6 | Electrical maintenance kits | with multimeter | 3sets |
| 7 | Screw tap | Coarse threadM4;M5;M6;M8;M10;M12 | 3sets |
| 8 | Screw tap | Fine thread M8;M10;M12 | 3sets |
| 9 | Screw tap holder | 180mm;230mm | 3sets |
| 10 | Screw die | Coarse thread M4;M5;M6;M8;M10;M12 | 3 sets |
| 11 | Screw die | Fine threadM8;M10;M12 | 3sets |
| 12 | Drill | 1-10mm (at intervals of)0.5mm | 6 sets |
| 13 | Drill | 11-16mm | 6 sets |
| 14 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | 3sets |
| 15 | Steel ruler | 150mm,300mm | 3 sets/6pcs |
| 16 | Vernier caliper | 200mm,250mm | 3 sets/6pcs |
| 17 | Screw thread gauge | the metric system; British system; | 6pcs |
| 18 | Tape | 2m | 3 pcs |
| 19 | Round head hammer | 2.5 pound | 3 pcs |
| 20 | File | roundness\semi-circle\flat\square \triangle,,,,, |
3sest/18pcs |
| 21 | Assorted set of files | 6 sets | |
| 22 | Screwdriver | cross 125mm;minus 125mm125mm,125mm | 3sets/6pcs |
| 23 | Pointed plier | 150mm | 3 |
| 24 | Steel wire clamp | 200mm | 3 |
| 25 | Carp clamp | 200mm | 3 |
| 26 | Oxygen watch | 3 | |
| 27 | Acetylene watch (with backfire firearms) () | 3sets | |
| 28 | Welding wire clip | 500A | 3 |
| 29 | White glass | , 10 | 30pcs |
| 30 | Protection glasses | , | 3 |
| 31 | Steel brush | steel, | 3 |
| 32 | Emery cloth | 60#;80#;120#g30pcs | 90pcs |
| 33 | Metric fixed wrench | 10pcs/set | 3sets |
| 34 | Metric ring wrench | 10pcs/set | 3 sets |
| 35 | Wrench | 8";10";12" | 3sets/9pcs |
| 36 | Round head hammer | 1.5 pound | 3 |
| 37 | Oxygen tube | 30m | 3 |
| 38 | Acetylene tube | 30m | 3 |
| 39 | Hand electric drill | 220V,50HZ,800W | 3 |
| 40 | Hyd. Jack | 10T;32T | 3sets |
| 41 | Socket wrench | 8mm-32mm | 3 sets |
| 42 | Cut clamp | medium-sized | 3 |
| 43 | Welding gloves | 2 | 6sets |
| 44 | Welding rod | 5kg/bag ,6 | 18 bags |
| 45 | Work Light | 24V 60W 15m | 3 |
| 46 | Welding mask | 3 |
