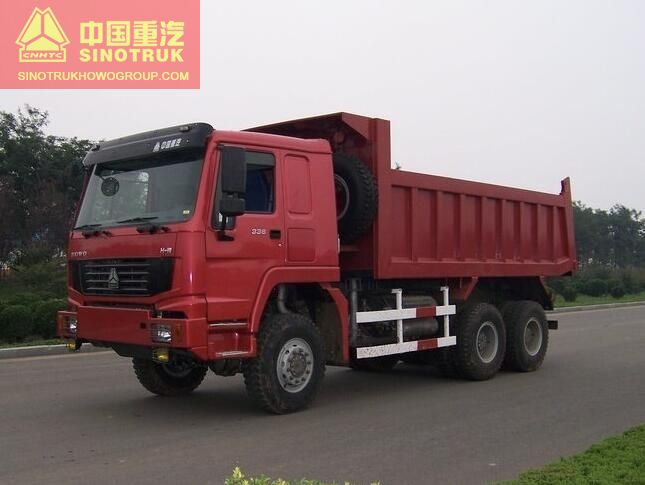

Model

6x6 dump truck

Cabin

Four point s suspension Howo Cabin with spring and air shock absorber, A/C, VDO panel

Adjustable steering, sun cover

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WD615. 95E

STEYR technology(CNHTC)

MAX Horse power:

336HP/247KW

Displacement(L):

9.726liter (Euro 2 standard)

Max torque:

1500NM@1200-1600rpm

Bore/stoke:

126mm/130mm

Fuel consumption:

197g /kwh

Gear box

CNHTC

Max torque:1500NM

Model:

HW15710

Speed:

10speed,2 reverse

Ratio

1

2

3

4

5

6

7

8

9

reverse

14.2

10.62

7.87

5.88

4.38

3.27

2.43

1.8

1.34

13.91

Axle(front/rear)

Front axle

HF9ton STEYR technology front steering axle

Tandem

AC 16ton STEYR technology double reduction hub reductor driving axle Ratio: 4.42

Clutch

D430 diaphragm type clutch

Brake

Service brake: Dual lines air brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)

Steering

ZF8098, driver sit at the left hand side

Frame

strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim

12.00-20 nylon tyre

Suspension system: strongthen heavy duty Leaf spring type

Front/Rear

10/12

Dump body:

Inside size of Body(mm): 6000x2300x1100,8x6mm, made of high intensity steel

Lifting type: Front lifter “T” type hydraulic system. Refer to picture
