howo dump truck china
Warranty
We grants our clients a 12-month period or 60000km warranty for trucks products purchased from us.
Spare Parts
we are able to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
we are able to provide you with the overall installation of complicated trucks and equipment. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing date reports of installation and operation.
Training
we offer perfect facilities and comfortable environment and can provide training services to different users. The sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our company field, or at the client’s site.
|
Model |
ZZ3257N3647A |
|
|
Cab |
Model |
HW76 |
|
Type |
Extended cab, single sleeper, up and down, front and rear adjustable steering wheel, VDO instrument and control module, double locking structure seat belt, outer sun shield |
|
|
Engine |
Model |
WD615.69 |
|
Rated power kW/rpm |
247/2200 |
|
|
Maximum torque Nm/rpm |
1350/1300-1600 |
|
|
Displacement L |
9.726 |
|
|
Type |
Inline, six-cylinder, two-valve, supercharged intercooler, rear turbocharger |
|
|
Clutch |
Φ430 diaphragm spring clutch, hydraulically assisted by gas. WD615.62, WD615.87 comes standard with 430C, WD615.69 comes with 430B, WD615.47 comes with 430A |
|
|
Transmission |
HW series of 10-speed transmission, transmission-based, secondary box structure, the main box double shaft, deceleration of the planetary box, with power take-off. WD615.62, WD615.87, WD615.69 comes standard with HW15710, WD615.47 comes with HW19710 |
|
|
Front axle |
HF9 drum type, rated load 9 tons |
|
|
Rear drive axle |
HC16 double-stage deceleration (central deceleration + wheel deceleration), speed ratio: standard 5.73, optional 4.8 |
|
|
Suspension |
The front and rear suspensions are leaf springs, the front suspension is equipped with a shock absorber and a lateral stabilizer, and the rear suspension type is a disconnected balance suspension with a lateral stabilizer. |
|
|
Steering system |
ZF8098 direction machine, ZF steering oil pump, system pressure 18MPa |
|
|
Braking System |
Service brake: Double-circuit pneumatic brake; Parking brake: spring energy storage air brake; Auxiliary brake: Engine exhaust brake. Optional engine EVB, ABS and automatic clearance adjustment arm. |
|
|
Electrical system |
Voltage: 24V; Generator: 1540W; Starter: 24V, 7.5kW; Battery: 2×12V/165Ah |
|
|
Tires |
12.00-20; Optional 11.00-20 |
|
|
Fuel tank capacity L |
300 |
|
|
Service quality (vehicle/chassis) kg |
12250/8660 |
|
|
Total mass kg |
25000 |
|
|
Rated contained mass kg |
12620 |
|
|
Dimension(Lx W xH)mm(unloaded) |
8145×2496×3170 |
|
|
Chassis dimensions (length × width × height) mm |
7215×2496×2985 |
|
|
Wheelbase mm |
3625+1350 |
|
|
Front suspension/rear suspension (vehicle/chassis) mm |
1500/(1670/740) |
|
|
Track (front/back) mm |
2022/1850 |
|
|
Minimum ground clearance mm |
314 |
|
|
Approach angle/departure angle (whole vehicle/chassis) ° |
19/(26/64) |
|
|
Maximum speed km/h |
75 |
|
|
Maximum climbing ability % |
≥50 |
|
|
Minimum turning diameter m |
16.3 |
|
|
Container size (length × width × height) mm |
5400×2300×1200 |
|
|
Container volume m3 |
14.9 |
|

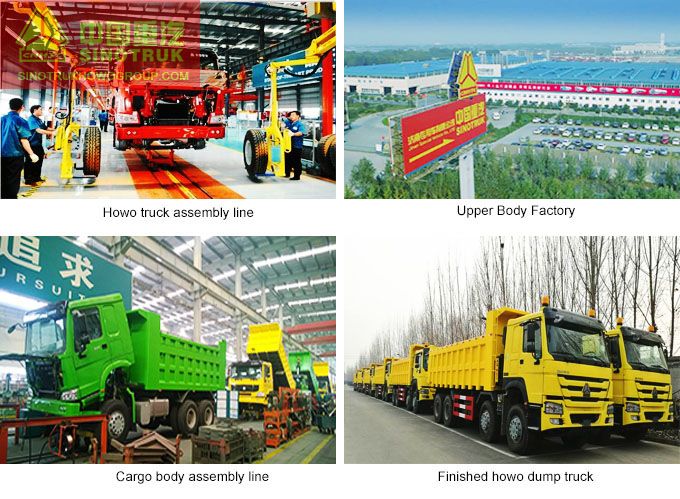

howo dump truck assembly line

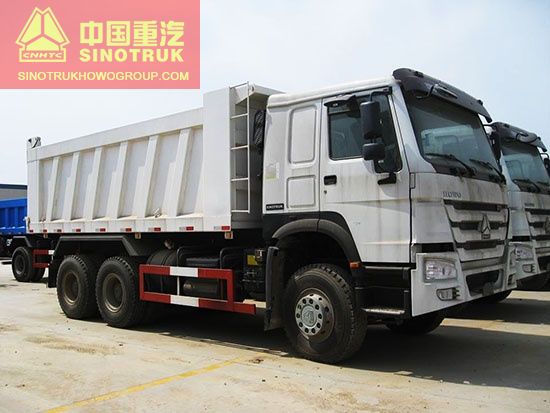

3. howo dump truck body
