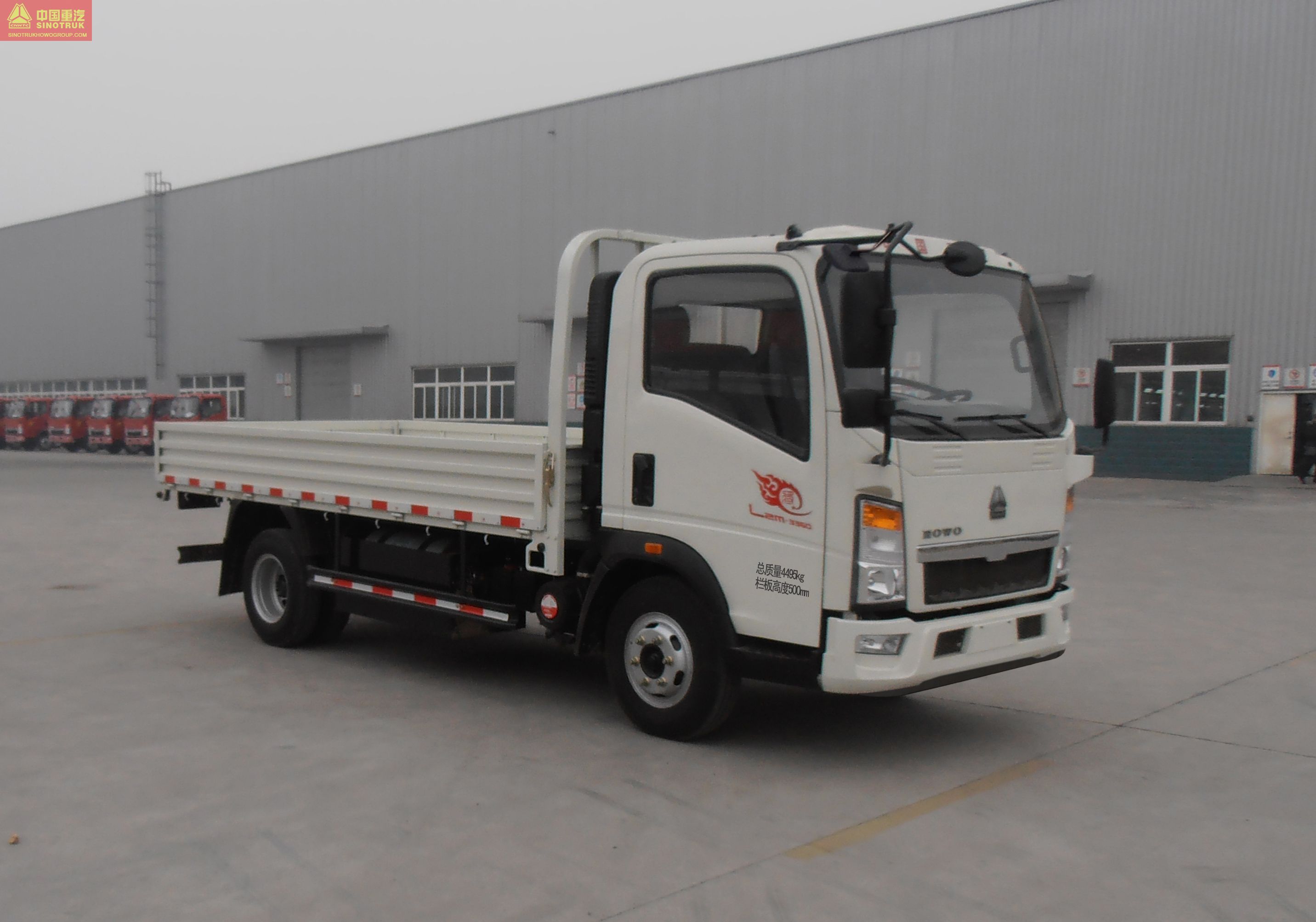

HOWO Light Duty Truck Series ZZ1047D3415E145C Cargo truck chassis
- Release time:
- Source:Sinotruk HOWO

This vehicle model features superior power, low fuel consumption, stable and reliable performance, and offers a variety of personalized configuration options; the cab is elegant, safe and comfortable. Suitable for short-distance transport in urban, suburban and rural areas.
| Weight Parameter | Curb Mass (kg) | 2565 | |
| Full Loaded Mass (kg) | 4495 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 5995 |
| Width (mm) | 2180,2250,2350 | ||
| Height (mm) | 2450 | ||
| Wheel Base (mm) | 3360 | ||
| Min. Ground Clearance (mm) | 210 | ||
| Performance Parameter | Max. Speed (km/h) | 95 | |
| Economic Speed (km/h) | 50-70 | ||
| Max. Grade Ability (%) | 25 | ||
| Min. Turning Diameter (m) | 14 | ||
| Engine | Model | CY4102-N5D CY4102-N5C |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 300/1400-1800,343/1400-1800 | |
| Transmission | WLY6TS55 | |
| Clutch(mm) | 350 | |
| Rear Axle Type | 1061 Rear axle assembly | |
| Rear Axle Ratio | 5.375 | |
| Fuel Tank (L) | 120 | |
| Frame Section(mm) | 195×65×6 | |
| Suspension (Front/Rear Spring) | 3/5+3,8/9+6,11/9+7,11/11+7 | |
| Tire | 7.00R16LT 8PR,7.50R16LT 6PR | |
