Sinotruk > Howo Truck > HOWO-T5G Series ZZ1257M56CGE1 Cargo truck chassis

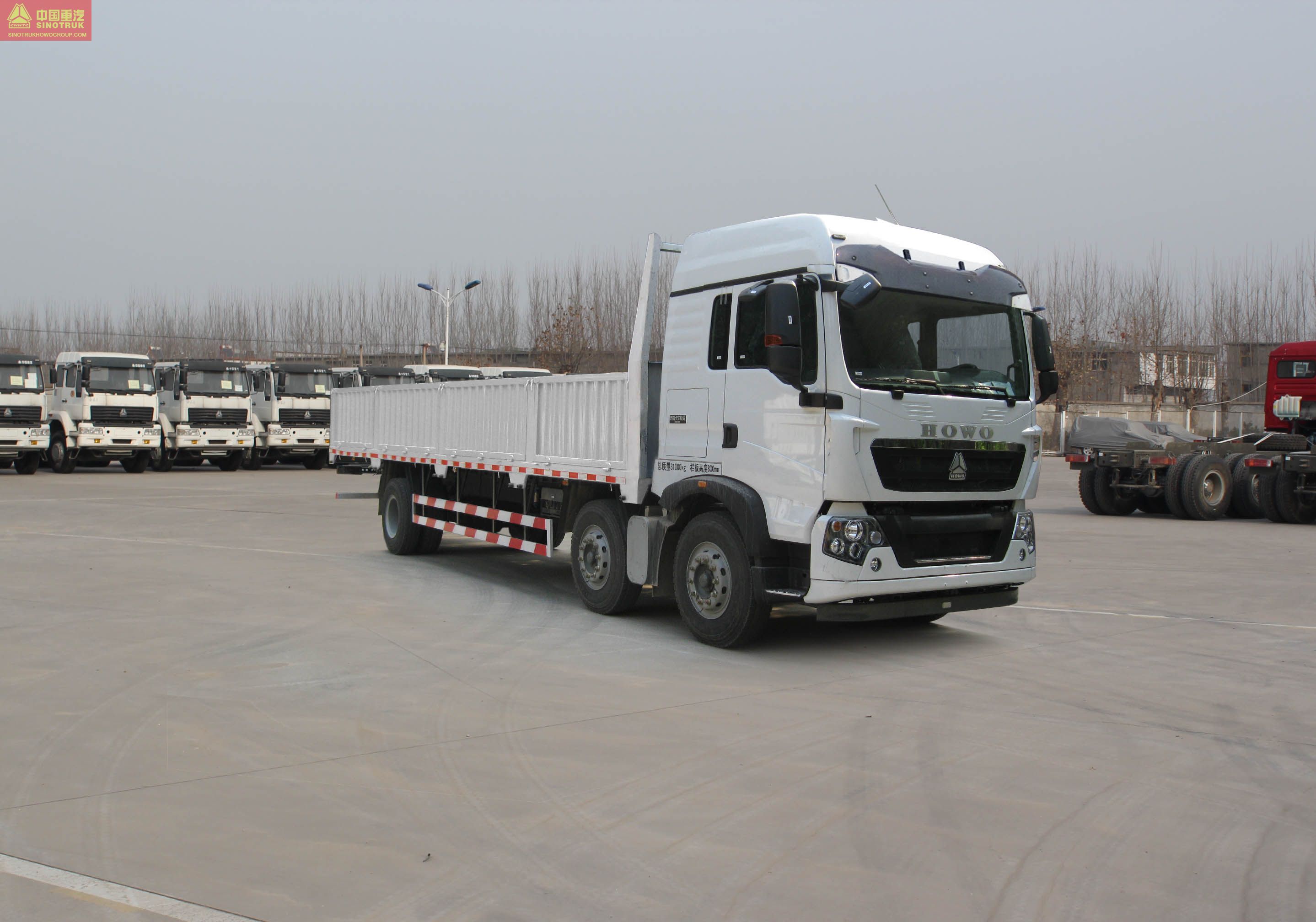

HOWO-T5G Series ZZ1257M56CGE1 Cargo truck chassis

This vehicle is an all new generation of high-end medium and heavy duty truck developed by CNHTC based on the core assembly technology from MAN. It features outstanding fuel economy, light weight, superior power, and stable and reliable performance; meanwhile, it offers multiple personalized configuration options, with an elegant, safe and comfortable cab. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway. 运输。

Weight Parameter Curb Mass (kg) 10200
Full Loaded Mass (kg) 25000
Rated Towing Mass (kg)
Dimension Parameter External Size Length (mm) 11130,12000
Width (mm) 2496
Height (mm) 3105,3405
Wheel Base (mm) 1800+5200,1800+5600
Min. Ground Clearance (mm) 260
Performance Parameter Max. Speed (km/h) 110
Economic Speed (km/h) 65~90
Max. Grade Ability (%) 35
Min. Turning Diameter (m) 23,24
Engine Model MC07.28-50,MC07.31-50
Net Power (kW)/Speed (r/min)
Max. Torque (Nm)/Speed (r/min) 1100/1200~1800,1230/1200~1800
Transmission HW13709XSTC
Clutch(mm) φ430
Rear Axle Type MCY11
Rear Axle Ratio 4.11
Fuel Tank (L) 300
Frame Section(mm) Front 965 rear 850×280×80×(7+4)
Suspension (Front/Rear Spring) 11/11/10+9,3/3/3+2
Tire 11.00R20,12R22.5,295/80R22.5
