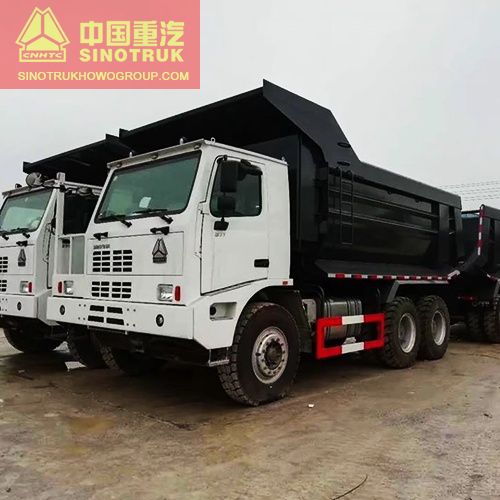

70 ton mining truck howo 420 dump truck
1. howo 420 dump truck specification
| Cabin | Driving type 6X4 LHD Model: ZZ5707V3640CJ |
|
| SINOTRUK HW7D single side cab,no bunk,left driving,air conditioner | ||
| Dimensions | 8300×3300×4340 mm | |
| Wheel Base | 3600+1500 mm | |
| GVW | 70000kg | |
| Rated Load Weight | 50000kg | |
| Kerb Weight | 20000kg | |
| Engine | Brand | Sinotruk |
| Model | D12.42 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 11.596L | |
| Bore X Stroke | 126x155mm | |
| Horse Power (HP) | 420 | |
| Emission standard | Euro II | |
| Transmission | HW19710 transmission,10 forward and 2 reverse with HW70 power take off | |
| Max Speed | 46(10.47)/57(8.51) km/h | |
| Tire | 14.00-25(36PR) Mining tyre with 1 Spare tire.Option:14.00R25 Mining radial tyre | |
| Oil Tank | D type-500L Aluminum alloy fuel tank | |
| Brake System | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2x12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Carriage Body | The carriage can be heightening Steel thickness of Carriage floor optional 12/14/16mm Steel thickness of Carriage side optional 10/12/14mm Ordinary steel,optional Manganese plate-Mn16,high strength steel Carriage lifting mode:Front lift,China system and HYVA system. |
|
