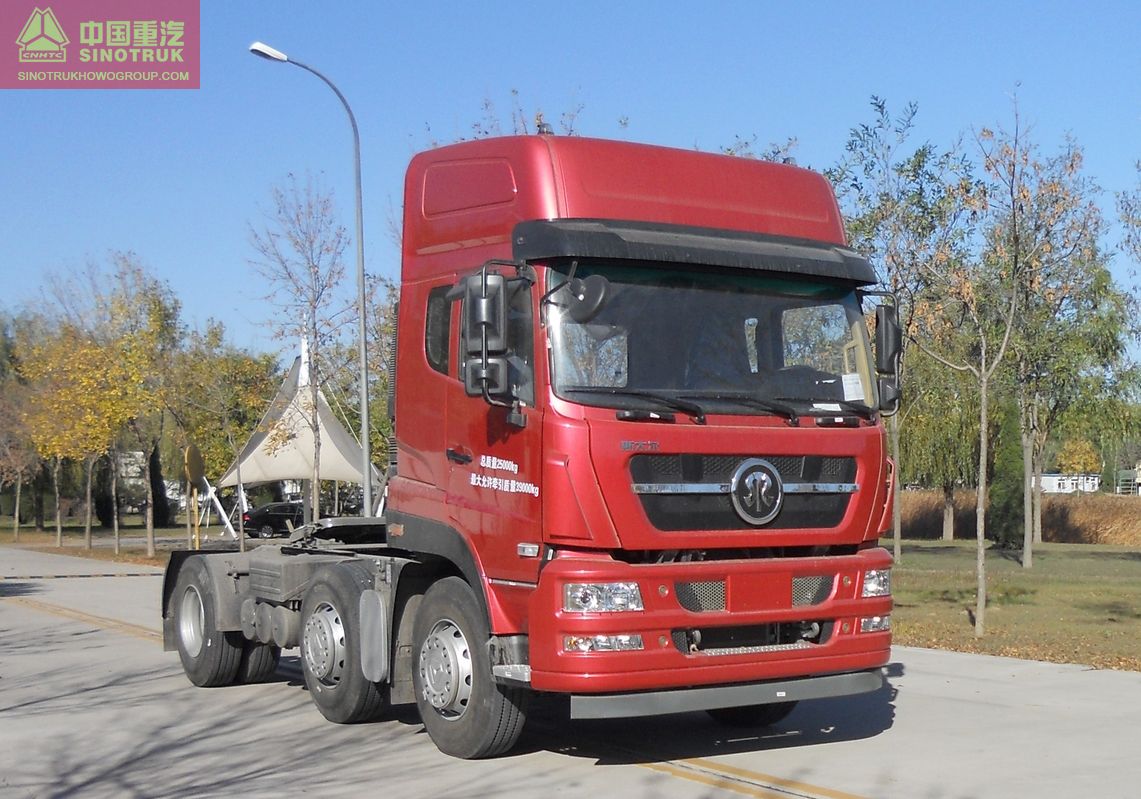

STEYR-M5G Series ZZ4253N27CGE1 Tractor truck
- Release time：
- Source：Sinotruk HOWO
As a mature product of CNHTC, this vehicle is superior in power, low in fuel consumption, stable and reliable in performance, and has a variety of personalized configuration options; the cab is beautiful and elegant, safe and comfortable. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 7100 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | 39000 | ||
| Dimension Parameter | External Size | Length (mm) | 6895 |
| Width (mm) | 2496 | ||
| Height (mm) | 3040,3600,3700,3765 | ||
| Wheel Base (mm) | 1800+2700 | ||
| Min. Ground Clearance (mm) | 280 | ||
| Performance Parameter | Max. Speed (km/h) | 110 | |
| Economic Speed (km/h) | 60～80 | ||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | |||
| Engine | Model | MC07.34-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1250/1200-1800 | |
| Transmission | HW19712CL/HW13709XSTCL/HW13710C2L | |
| Clutch（mm） | ||
| Rear Axle Type | HT457/MCY13 | |
| Rear Axle Ratio | 4.875/4.444/5.286//3.7/4.11/4.63 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 270 | |
| Suspension (Front/Rear Spring) | 11/11/10+9,3/3/10+9,3/3/5,3/3/- | |
| Tire | 295/80R22.5,12R22.5,11.00R20 | |
