HOWO Light Truck Series 4x2

Release time：Oct 4, 2025
Source：Sinotruk HOWO

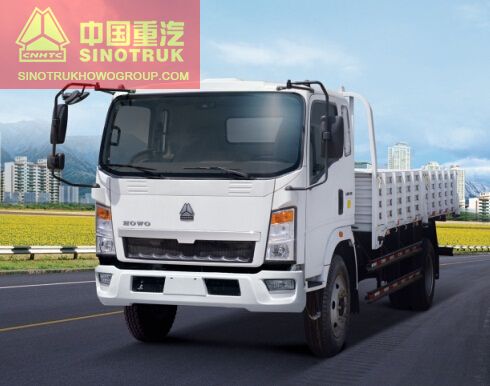

HOWO Light Truck Series

HOWO Light Truck(4x2 Rigid)

Rated Payload 6~8T YC4E140 YC4E160

Dimensions (mm)
Vehicle Model		ZZ1127G3815C1	ZZ1127G4215C1	ZZ1127G4515C1
Cab width		2080	2080	2080
L1 Wheelbase		3800	4200	4500
L2Front overhang		1240	1240	1240
L4Rear overhang		1955	1900	2075
L6Centre line of front axle to back of cab	- with sleeper	781	781	781
B1 Frontwheel track		1798	1798	1798
B3 Rear wheel track		1764	1764	1764
B4 Width across rear tyres		2300	2300	2300
L Chassis length		6810	7340	7815
B2 Chassis width		2330	2330	2330
H1 Chassis height without air spoiler		2550	2550	2550
Overall length with cargo box		6995	7445	7995
Overall width with cargo box		2330/2400	2330/2400	2330/2400
Overall height with cargo box		2650	2650	2650
H2Frame height	- laden	946	946	946
	-unladen	1043	1043	1043
L5 Recommended inside box sizes	length	4850	5200	5750
	width	2150/2300	2150/2300	2150/2300
	height	550	550	550

Weights (kg)
Gross vehicle weight (GVW)	12490	12490	12490
Complete vehicle kerbweight	4325	4335	4345
Chassis kerbweight	4125	4135	4145

Performance
Maximum speed (km/h)	118	118	118
Maximum gradeability (%)	35	35	35
Minimum turning diameter (mm)	15.5	16.8	18.5
Minimum ground clearance (mm)	210	210	210
Fuel consumption (L/100km)	20~25

Engine- EuroⅡ
Parameters		Features
Model YC4E140-33, 4-cylinder in-line, 4.257litre for payload 6 T, diesel Rated power: 140PS@2800rpm; Maximum torque:430Nm@1300~1700rpm YC4E160-33, 4-cylinder in-line, 4.257litre for payload 8 T, diesel Rated power: 160PS@2600rpm; Maximum torque:520Nm@ 1300~1700rpm		Turbo-charging and Intercooling Electric controlflameout Electric heating for intake air Options: Air dryer Exhaustbrake
Clutch	Axles		Braking System
Φ350 diaphragm spring clutch, single plate	Front 1090,forging I-beam Drum brake		Type Air brake system
Φ350 diaphragm spring clutch, single plate	Front 1090,forging I-beam Drum brake		Service brake Dual-circuit air brake
Gearbox	Rear 1118, pressed welding axle housing Drum brake Ratio: 5.286，6.33		Parking brake Spring energy brake
WLY6T51 for YC4E140 6-speed manual control gearbox Ratio: 1-5.512-3.4173-2.1154-1.381 5-1.006-0.795 R1-5.128			Auxiliary brakeExhaust brake(Option)
	Suspension		Wheels &Tyres
	Front Semi-elliptical leaf springs with shockabsorbers		Tyres 8.25R20
			Wheels 6.50-20
			Option:
Maximum input torque: 550Nm Rated rotation speed: 2800rpm Centre distance: 115mm	Rear Semi-Elliptical leaf springs with shock absorbers		Tyres 9.00R20
			Wheels 7.00-20
			Frame
DC6J65TC for YC4E160 6-speed manual control gearbox Ratio: 1-6.7192-4.0313-2.3044-1.4435-1.006-0.74 R1-6.122	Fuel Tank		Frame
			MaterialHigh tensile steel
			Section 232x 70 x 7 mm
			Frame widthFront 865mm / rear 865mm
			General Equipment
	Capacity 160 Liter		Fuel filter with water separator
Maximum input torque: 630Nm Rated rotation speed: 3000rpm Centre distance: 130mm	Type Aluminum,lockable		Sun visor
	Option 230Liter for 4200/4500mm		Roof flap
	Electrical System		Reversebuzzle
Steering System	Voltage 24 V		Battery main switch
Power steering	Batteries2 x 12V,120Ah		Heating & ventilation system
Adjustable steering wheel	Alternator 28V/55A		Radio+MP3
Exhaust System	Starter 6KW		Options:
Cylindrical muffler	Options:		Electric power windows
	120Ah batteries		Air conditioner
			Anti-lock braking system(ABS)
			Metallic paint (except white)
