howo truck mounted crane
one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site, mine, etc.
Product Notes:
- Optional: from 2 ton to 20 ton lifting capacity crane truck
- Optional: straight arm and folding arm truck crane with or without remote control
- Optional: howo chasis, high power and speed, great grade ability, high lifting distance, wide working range.
|
Description |

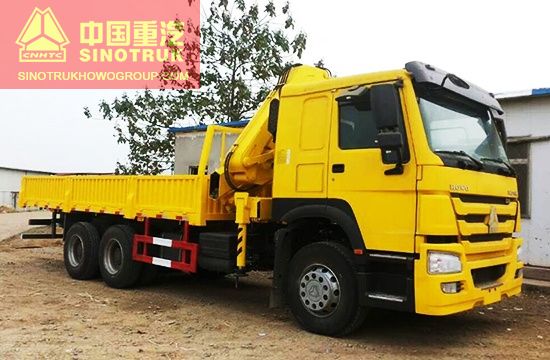

HOWO 6x4 truck with crane |
||
|
Vehicle Main Dimensions |
(L x W x H)mm |
11700*2496*3635 |
|
|
Wheel base (mm) |
5825+1350 |
||
|
Weight in KGS |
Curb Weight |
15000 |
|
|
GVW |
25000 |
||
|
Max. driving speed(km/h) |
102 |
||
|
Engine |
Model |
WD615.47 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power(HP) |
371 | ||
|
Emission standard |
Euro II |
||
|
Gearbox |
10 forwards& 2 reverse |
||
|
Fuel Tank |
300L |
||
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
||
|
Tire |
1200R20, 10+1 spare |
||
|
Brakes |
Service brake: dual circuit compressed air brake |
||
|
Steering Gear |
power steering, hydraulic steering with power assistance |
||
|
Equipment for Crane Mounted Parts |
|||
|
Working Platform |
360°turning(left or right), H-shape legs 360° |
||
|
Cargo Box |
8200×2300×500mm |
||
|
Equipment |
Crane can be selected Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube; |
||
|
Crane specifications |
Brand : XCMG |
||
|
Max lift capacity: 6300 kg |
|||
|
Max working radius 10 m |
|||
|
Lifting Max. Height 12.5m |
|||
6.3 T knuckle crane
|
Type |
SQ6.3SK2Q |
|
Crane Weight |
2266KG |
|
Max Lifting Capacity |
6000kg |
|
Max Lifting Moment |
15.7TM |
|
Recommend Power |
20kw |
|
Max Oil Flow of Hydraulic System |
40L/MIN |
|
Rated Pressure Of Hydraulic System |
20MPA |
|
Oil Tank Capacity |
90L |
|
Rotation Angle |
All Rotatio |
