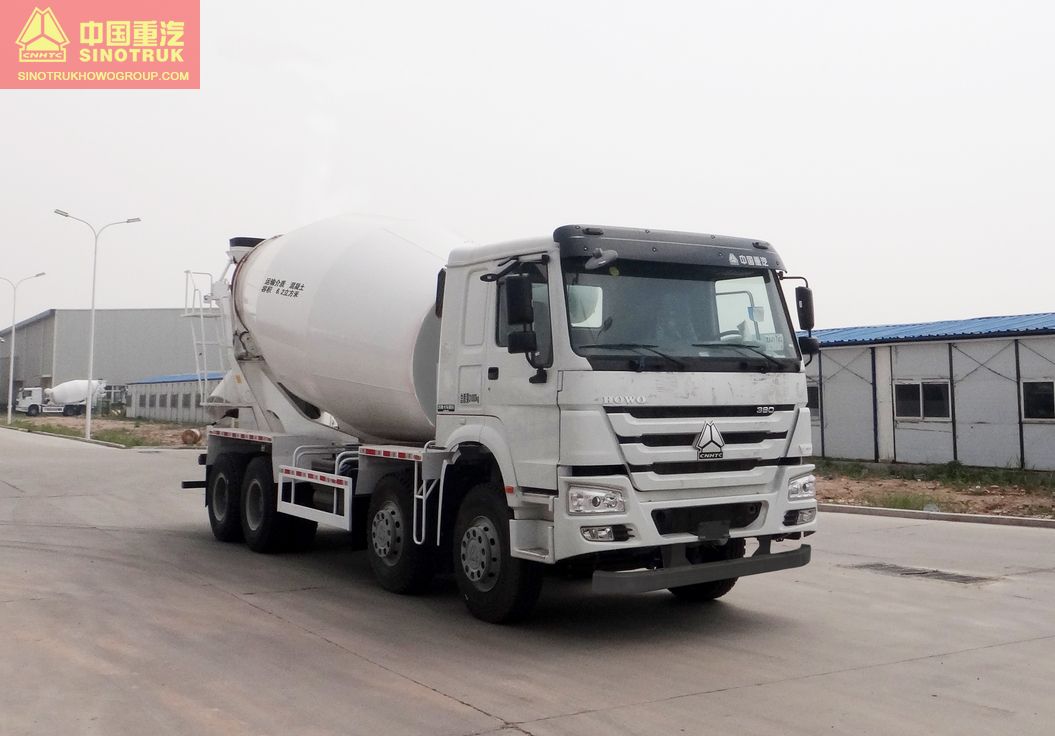

HOWO Series ZZ5317GJBN3667E1 Concrete transit mixer
- Release time：
- Source：Sinotruk HOWO
A mature product of CNHTC, this vehicle features stable structure, high carrying capacity, strong power, and reliable performance. Enjoying high recognition in the market, it meets the requirements for use in harsh enviroments such as construction sites and mining areas, suitable for short-distance earthwork and building construction.
| Weight Parameter | Curb Mass (kg) | 1655018420 | |
| Full Loaded Mass (kg) | 31000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 10820,11850 |
| Width (mm) | 2496 | ||
| Height (mm) | 3980 | ||
| Wheel Base (mm) | 1800+3600+1350,1800+3825+1350 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 80 | |
| Economic Speed (km/h) | 60 | ||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | |||
| Engine | Model | D10.28-50;D10.31-50;D10.34-50;D10.38-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1190/1200～1500 1390/1200～1500 1490/1200～1500 1560/1200～1500 | |
| Transmission | HW19710 | |
| Clutch（mm） | 430 | |
| Rear Axle Type | HC16 | |
| Rear Axle Ratio | 5.73 4.8 4.42 | |
| Fuel Tank (L) | 400 | |
| Frame Section（mm） | 300×80×8 | |
| Suspension (Front/Rear Spring) | 4/4/-,4/4/12,11/11/-,11/11/12 | |
| Tire | 315/80R22.5 18PR/315/80R22.5 16PR,12.00R20 16PR,11.00R20,12.00-20 16PR,11.00-20 | |
