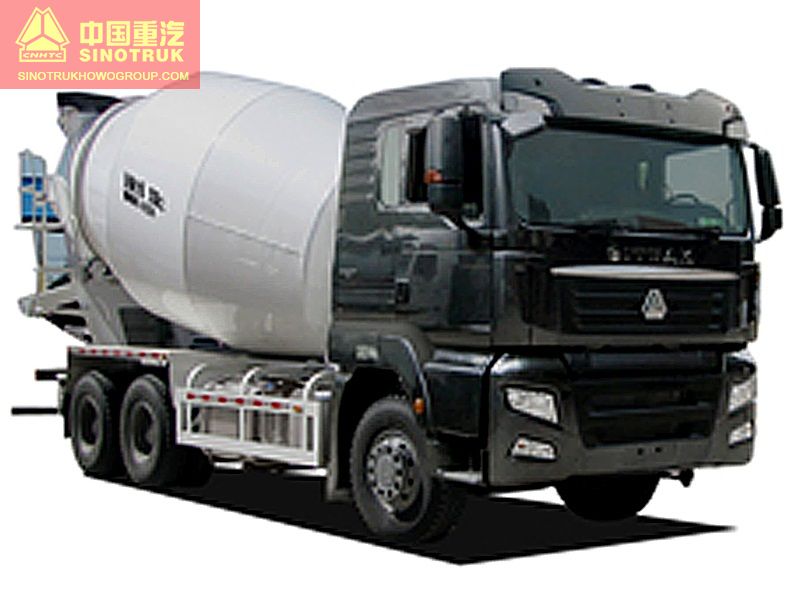

Sitrak C7H Concrete Mixer Truck
- Release time：
- Source：Sinotruk HOWO
It is a new generation high-end heavy truck derived from the MAN assembly with excellent engine force and stability, rendering the mixed and transported concrete in a highly coherent texture, which can be unloaded rapidly with low residue. It highly fuel-efficient, making it highly profitable.
Technical Parameters
| Mass Parameter | Curb Weight（kg） | 14170 | |
| Fully-Loaded Mass（kg） | 25000 | ||
| Towable Mass （kg） | ? | ||
| Dimensions | Overall Dimensions | Length（mm） | 9940 |
| Width（mm） | 2496 | ||
| Height（mm） | 3980 | ||
| Wheel Base（mm） | 4025+1350 | ||
| Minimum Ground Clearance（mm） | 314 | ||
| Performance Parameters | Maximum Speed（km/h） | 78 | |
| Economic Speed（km/h） | 50～70 | ||
| Maximum Gradability（%） | ≥45% | ||
| Minimum Turning Diameter（m） | 17 | ||
| Engine | Model | MC11.40-40,MC11.44-40 |
| Net Power（kw）/Rotating Speed（r/min） | 294/1900,324/1900 | |
| Maximum Torque（Nm）/Rotating Speed（r/min） | 1900/1000～1400,2100/1000～1400 | |
| Gearbox | ZF16S | |
| Clutch（mm） | 430 | |
| Rear Axle Type | AC16 | |
| Rear Axle Gear Ratio | 4.77 | |
| Oil Tank（L） | 400 | |
| Chassis Cross Section（mm） | 300×85×（8+8） | |
| Suspension (Frontal & Rear Springs) | 4/-,4/5,9/12 | |
| Tires | 11.00-20,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR |
|
