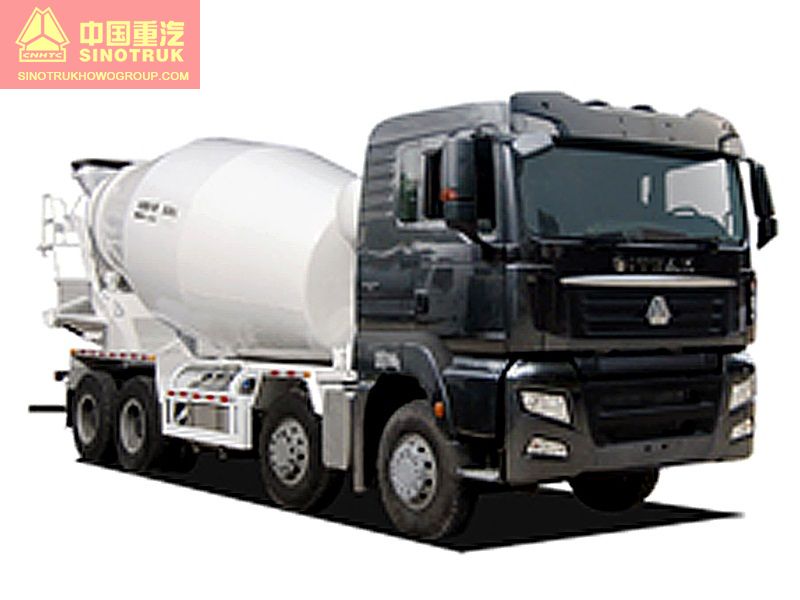

Sitrak C7H Concrete Mixer Truck 8x4
- Release time:
- Source:Sinotruk HOWO

Technical Parameters
| Mass Parameter | Curb Weight(kg) | 15880 | |
| Fully-Loaded Mass(kg) | 31000 | ||
| Towable Mass(kg) | ? | ||
| Dimensions | Overall Dimensions | Length(mm) | 10735 |
| Width(mm) | 2496 | ||
| Height(mm) | 2496 | ||
| Wheel Base(mm) | 1950+3225+1350 | ||
| Minimum Ground Clearance(mm) | 314 | ||
| Performance Parameters | Maximum Speed(km/h) | 78 | |
| Economic Speed(km/h) | 50~70 | ||
| Maximum Gradability(%) | ≥40 | ||
| Minimum Turning Diameter(m) | 21.5 | ||
| Engine | Model | MC11.40-40,MC11.44-40 |
| Net Power(kw)/Rotating Speed(r/min) | 294/1900,324/1900 | |
| Maximum Torque(Nm)/Rotating Speed(r/min) | 1900/1000~1400,2100/1000~1400 | |
| Gearbox | ZF16S | |
| Clutch(mm) | 430 | |
| Rear Axle Type | AC16 | |
| Rear Axle Gear Ratio | 4.77 | |
| Oil Tank(L) | 400 | |
| Chassis Cross Section(mm) | 300×85×(8+8) | |
| Suspension (Frontal & Rear Springs) | 4/4/-,4/4/5,11/11/12 | |
| Tires | 11.00-20,11.00R20,12.00-20 16PR,12.00R20 16PR | |
