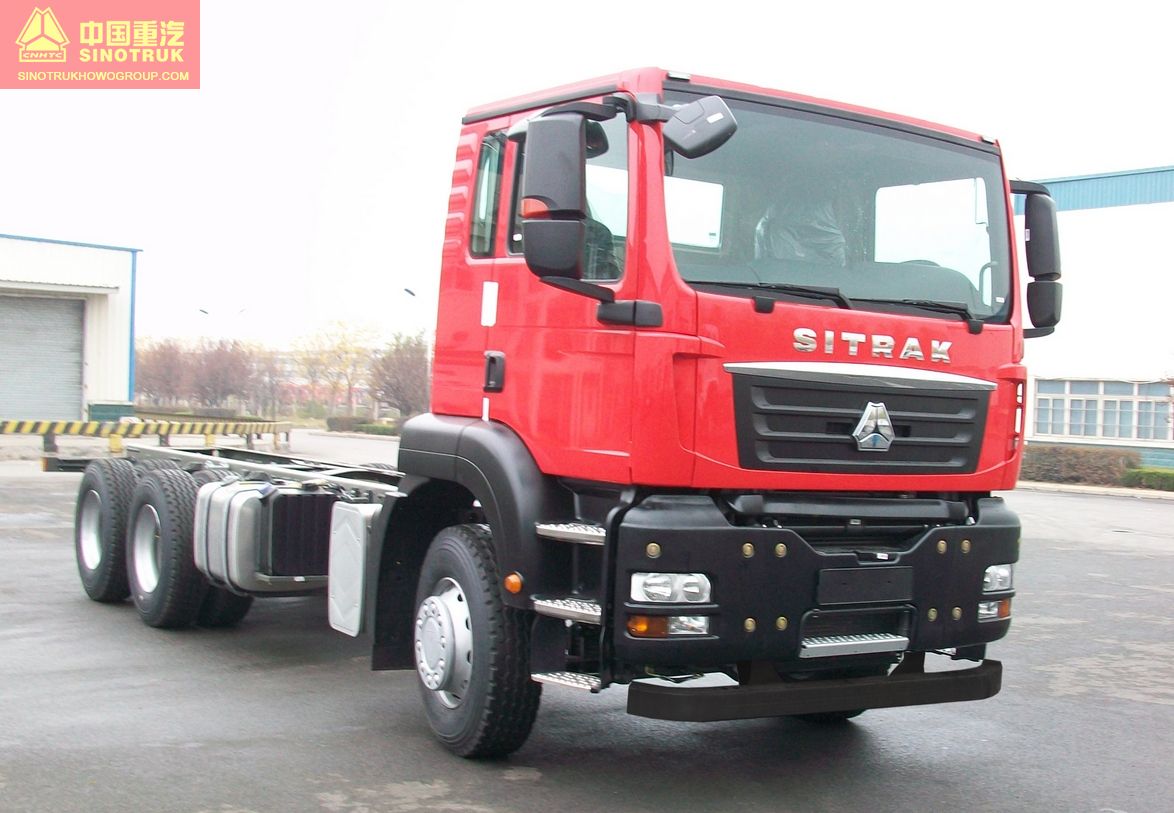

SITRAK-C7H Series ZZ5356V524ME1 Cargo truck chassis
- Release time：
- Source：Sinotruk HOWO
The vehicle is a new generation of high-end heavy truck developed by CNHTC based on the core assembly technology from MAN; tall and mighty, it is like a king showing its dominance of the road, its power, stability, reliability, economy and comfort meeting the international level, its safety, reliability and intelligent levels aligned with international standards; also, it offers multiple personalized configuration options. Applicable to the drop and pull transport on trunk highways for medium-high level organized transport and high-end logistics.
| Weight Parameter | Curb Mass (kg) | 9300 | |
| Full Loaded Mass (kg) | 35000 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 9775 |
| Width (mm) | 2496 | ||
| Height (mm) | 3410,3620,3960,3980 | ||
| Wheel Base (mm) | 4600+1400 | ||
| Min. Ground Clearance (mm) | 238 | ||
| Performance Parameter | Max. Speed (km/h) | ||
| Economic Speed (km/h) | 60～80 | ||
| Max. Grade Ability (%) | 35 | ||
| Min. Turning Diameter (m) | 20 | ||
| Engine | Model | MC11.40-50,MC11.44-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1900/1000～1400,2100/1000～1400 | |
| Transmission | ZF16S | |
| Clutch（mm） | φ430 | |
| Rear Axle Type | MCY13Q | |
| Rear Axle Ratio | 4.11(3.7,3.36,3.08） | |
| Fuel Tank (L) | 300 | |
| Frame Section（mm） | 300×80×8 | |
| Suspension (Front/Rear Spring) | 4/5 | |
| Tire | 315/80R22.5 16PR | |
