howo dump truck price
- Release time：
- Source：Sinotruk HOWO
Howo dump truck price
1. howo dump truck price specification
|
Truck Model |
ZZ3257N3847A |
|
Truck Brand |
SINOTRUK HOWO |
|
Driving Style |
Left/Right Hand Driving are available |
|
Dimension (L*W*H)(unloaded)(mm) |
8545x2496x3270 |
|
Cargo body size (L*W*H, mm) |
5800x2300x1500 |
|
Cargo thickness (mm) |
Bottom: 8/10/12 or as your choice |
|
Side: 6/8/10 or as your choice |
|
|
Lift type of Carriage |
Middle/Front lifting |
|
Approaching angle / Departure angle (°) |
19/37 |
|
Overhang(front / rear)(mm) |
1500/1870 |
|
Wheel base (mm) |
3825+1400 |
|
Max speed (km/h) |
75 |
|
Curb weight (kg) |
12460 |
|
Loading Weight (kg) |
25000 |
|
Fuel tanker capacity (L) |
300 |
|
Fuel consumption (L/km) |
28L/100 |
|
Clutch |
Single-plate dry clutch Φ 430mm |
|
Fuel type |
Diesel |
|
Horse Power, max (kw/rpm) |
371HP |
|
Emission |
EURO II |
|
Transmission |
HW19710 , 10 forwards and 2 reverse |
|
Brake system |
Dual circuit compressed air brake |
|
Parking brake |
Spring energy, compressed air operating on rear wheels |
|
Auxiliary brake |
Engine exhaust brake |
|
Steering system |
ZF8118 hydraulic steering with power assistance |
|
Front axle |
HF9/HR9 , Steering with double T-cross section beam |
|
Rear axle |
HC16/AC16,Pressed axle housing,central double reduction with differential locks between axles and wheels |
|
Color |
Optional( White , Red , yellow or as your choice ) |
|
Tyre |
11.00R20/12.00R20/315/80R22.5 |
|
Cab |
HOWO76 cab,single sleeper with air conditioner all-steel forward control,55º hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds,laminated windscreen with casted-inradio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorber |
1. Strong power and fuel sufficiency
This truck adopts well-known engine, which has been praised as a world-chases power, is one of international leading level technique. at the same time, mature performance ensures fuel-efficient and energy saving.
2. Rational equipments and wild application
High loading capacity, axle can be choosing. Equipped with several models of lifters, wild power ranges, to meet various requirements of large heavy projects.
3. Durable and bearing capacity
This truck adopt through-type technology and rear axle single-stage reducer, so which is with high efficiency drive. The use of advanced design and optimized the design of he frame, making the structure more reasonable, durable, with strong bearing capacity.
The standard capacity is 35 tons and 20cubic. With bottom 8 and side 6 carriage box, the truck is suitable to transport most of the goods such as mineral, sand, construction garbage etc. You can also choose thinner carriage for quarry. The 12.00R20 RADIAL tires are the most cost-effective and perfect for mining environment. Other sizes and radial tires are also available

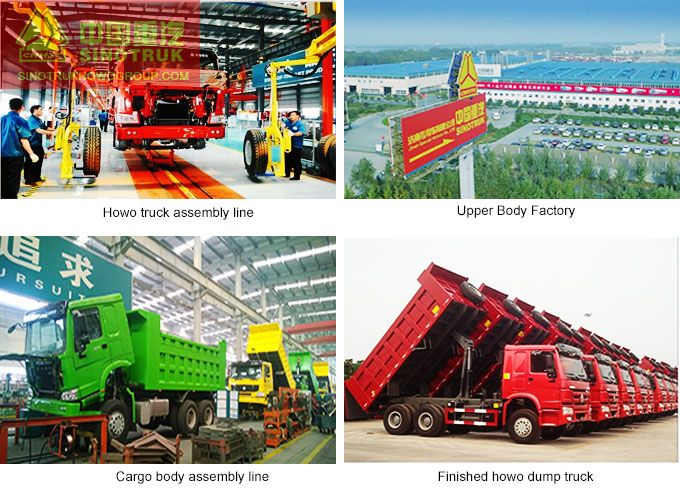

2. howo dump truck price is competitive and below assembly line
3. howo dump truck body is durable with good price
4. Shipment we will take the way like below
