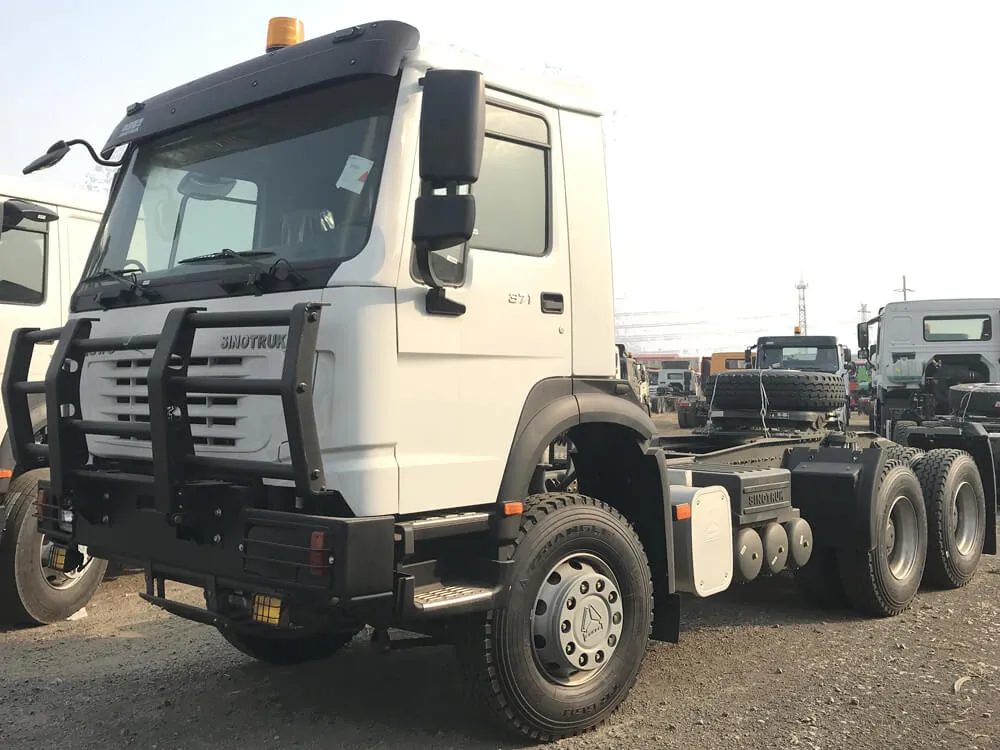

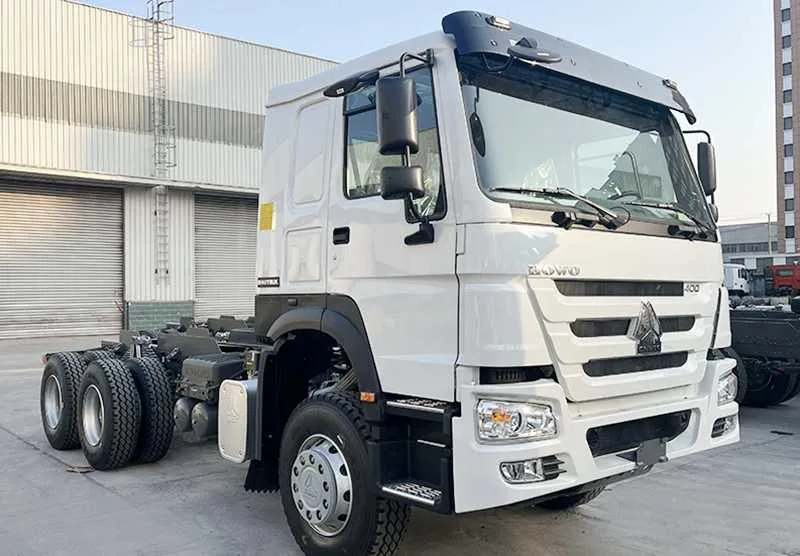

Sinotruk HOWO 6X4 Tractor Truck - 400HP |
|
|
Chassis Model |
ZZ4257S3241W (Right/Left Hand Driving Type) |
|
Production Year |
2023, new truck. |
|
Cabin |
HW76 cab, with one sleeper and two seats air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
|
Engine |
Diesel 4-stroke direct injection diesel engine Engine model: WP12.400E201, Euro 2, 400 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 11.596 L |
|
Transmission |
HW19710, 10F & 2R. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
|
Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance |
|
Front Axle |
VGD71, 1x7000 KGS Steering with double T-cross section beam |
|
Rear Axle |
ST16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:4.42 |
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension: 3 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer |
|
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
Tires |
315/80R22.5, tubeless tires with one spare tire. |
|
Fuel Tank |
400L |
|
Fifth Wheel |
50# or 90# optional |
|
Color |
Optional |
