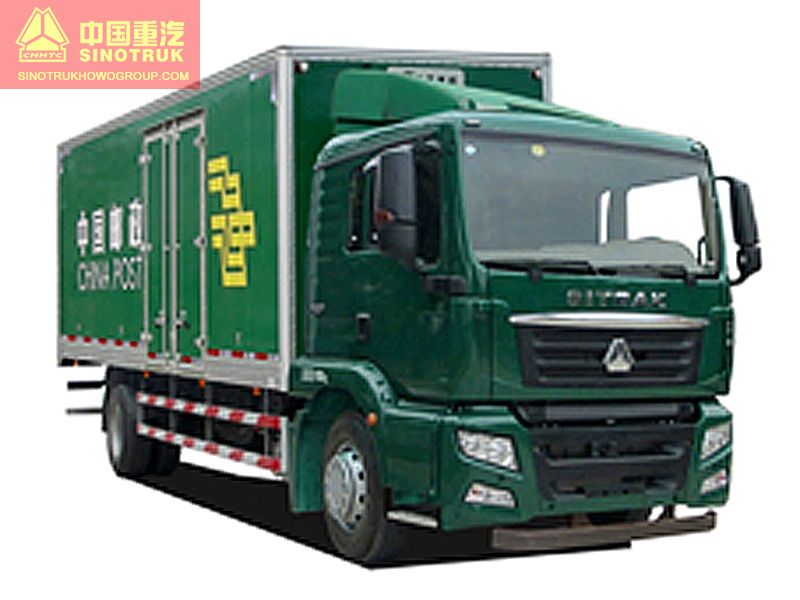

Sitrak C5H Special Model-Mail Transporter Truck
- Release time：
- Source：Sinotruk HOWO
The C5H series is a new generation high-end medium truck derived from the MAN assembly, elegantly shaped with great power and bearing capacity that secure its high performance, with the engine force, fuel efficiency, riding comfort and maneuverability leading the homeland market. It is as safe, reliable and smart as all of its peers in the world market, and completed with multiple customization options, available for the duties of medium and high end logistics.
Technical Parameters
| Mass Parameter | Curb Weight（kg） | 7815 | |
| Fully-Loaded Mass（kg） | 16000 | ||
| Towable Mass（kg） | |||
| Dimensions | Overall Dimensions | Length（mm） | 9280,9680 |
| Width（mm） | 2550 | ||
| Height（mm） | 3880，3980 | ||
| Wheel Base（mm） | 5200 | ||
| Minimum Ground Clearance （mm） | 230 | ||
| Performance Parameters | Maximum Speed（km/h） | 110 | |
| Economic Speed（km/h） | 60～100 | ||
| Maximum Gradability（%） | 30 | ||
| Minimum Turning Diameter（m） | 18 | ||
Vehicle Disposition
| Engine | Model | MC05.21-40 ,MC07.21-40, MC07.24-40 |
| Net Power（kw）/Rotating Speed（r/min） | 148/2400,148/2300,173/2300 | |
| Maximum Torque（Nm）/Rotating Speed（r/min） | 830/1400，830/1200～1800,925/1200～1800 | |
| Gearbox | ZF 6S800 TO(MC05) ZF 9S1310 TO(MC07) | |
| Clutch（mm） | 395(MC05) 430(MC07) | |
| Rear Axle Type | MCY09(MC05) MCY11(MC07) | |
| Rear Axle Gear Ratio | 4.11 | |
| Oil Tank（L） | 300 | |
| Chassis Cross Section（mm） | Frontal 965 Rear 865×237×75×(7+4) Frontal 965 Rear 865×250×80×(7+5) | |
| Suspension (Frontal & Rear Springs) | 3/3+2,3/9+8,3/2+-,11/9+8 | |
| Tires | 10.00R20,11.00R20,295/80R22.5 | |
