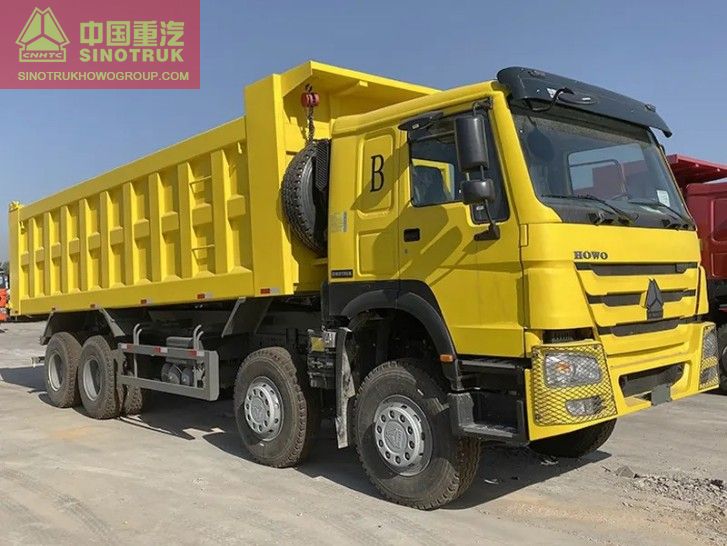

Used HOWO-7 sinotruk 12 Wheeler 30cbm howo 40tons 8x4 used dump tipper truck
- Release time：
- Source：Sinotruk HOWO
Driving Type8x4 / 12 Wheels / 4 Axles
Horse Power371HP /375HP
TransmissionHW19710, 10F & 2R
Bcket capacity40-50 tons
|
Truck Model
|
8x4
|
||
|
Truck Brand
|
SINOTRUCK –HOWO
|
||
|
Dimension(Lx W xH)（unloaded）（mm）
|
10300x2550x3450 mm
|
||
|
Cargo body size (L*W*H)
|
7600 x 2300 x 1500 mm
|
||
|
Cargo body thickness(mm)
|
bottom:8mm, side:6mm
|
||
|
Lift type of Carriage
|
Front lifting
|
||
|
Approaching angle/Departure angle（°）
|
19/23
|
||
|
Overhang(front/rear) (mm)
|
1500/1870
|
||
|
Wheel base (mm)
|
3625+1350
|
||
|
Max speed（km/h）
|
75
|
||
|
Curb weight（kg）
|
12600
|
||
|
Loading Weight（kg）
|
25000
|
||
|
Fuel tanker capacity(L)
|
300 /Optinal
|
||
|
Clutch
|
Single-plate dry clutch Φ430mm
|
||
|
Engine Model
(Steyr technology, made in China)
|
Model
|
WD615.47
|
|
|
Horse Power
|
371HP/375HP
|
||
|
Emission
|
EURO II
|
||
|
Fuel Type
|
Diesel
|
||
|
Transmission
|
Model
|
HW19710,10 forwards and 2 reverse
|
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
||
|
Auxiliary brake
|
Engine exhaust brake
|
||
|
Steering system
|
Model
|
hydraulic steering with power assistance
Ratio：22.2-26.2
|
|
|
Front axle
|
HF9*2
|
||
|
Rear axle
|
HC16 X2, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity: 16000kg
|
||
|
Color
|
Optional
|
||
|
Tire
|
315/80R22.5
|
||
|
Cab
|
HW76
|
||
