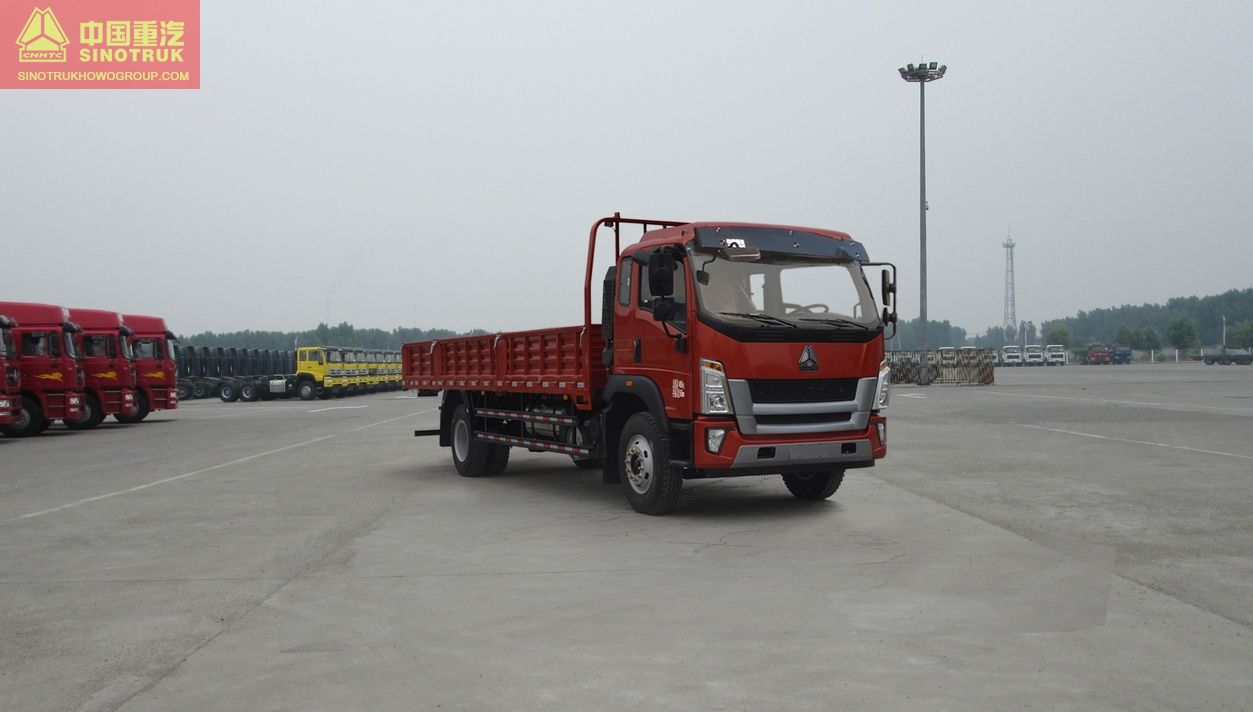

HOWO-G5X Series ZZ1147G421DE1 Cargo truck chassis
- Release time：
- Source：Sinotruk HOWO
This vehicle model features superior power, low fuel consumption, stable and reliable performance, and offers a variety of personalized configuration options; the cab is elegant, safe and comfortable. Suitable for short-distance transport in urban, suburban and rural areas.
| Weight Parameter | Curb Mass (kg) | 5940 | |
| Full Loaded Mass (kg) | 14060 | ||
| Rated Towing Mass (kg) | |||
| Dimension Parameter | External Size | Length (mm) | 7445 |
| Width (mm) | 2550 | ||
| Height (mm) | 2975 | ||
| Wheel Base (mm) | |||
| Min. Ground Clearance (mm) | 240 | ||
| Performance Parameter | Max. Speed (km/h) | 80，95 | |
| Economic Speed (km/h) | 65-80 | ||
| Max. Grade Ability (%) | 30 | ||
| Min. Turning Diameter (m) | 15 | ||
| Engine | Model | MC05.18-50MC05.21-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 700/1400,830/1400 | |
| Transmission | HW90510C | |
| Clutch（mm） | 395 | |
| Rear Axle Type | 1118 cast single rear axle | |
| Rear Axle Ratio | 4.33/4.875 | |
| Fuel Tank (L) | 200、300 | |
| Frame Section（mm） | 232×70×7 | |
| Suspension (Front/Rear Spring) | 3/5,3/9+8,11/9+8 | |
| Tire | 8.25R20,275/70R22.5,9.00R20,275/80R22.5,10R22.5 | |
