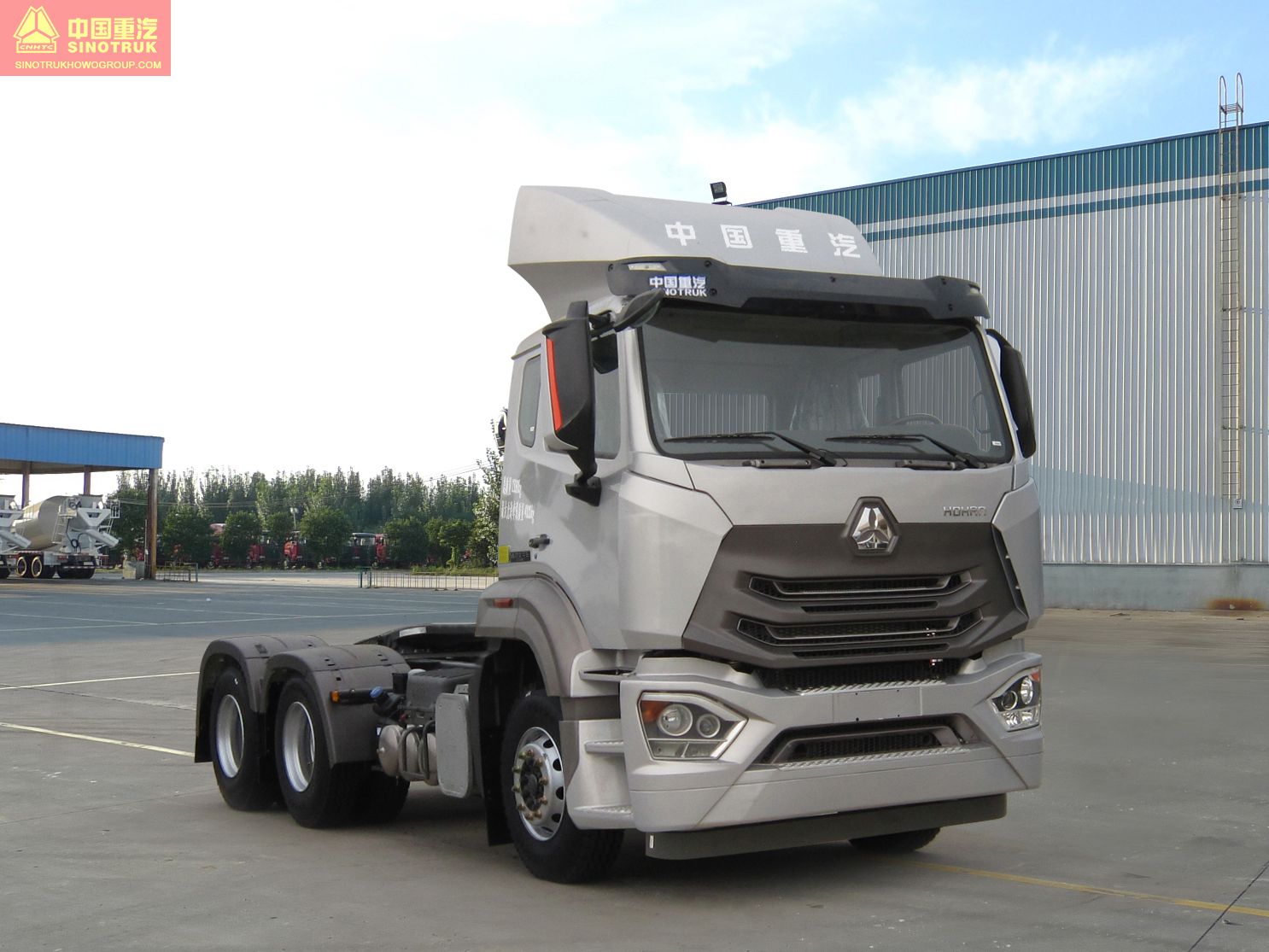

Hohan N7G Series ZZ4255N3246E1 Towing truck chassis
- Release time：
- Source：Sinotruk HOWO
The Hohan series cargo trucks feature strong power, low fuel consumption, stable and reliable performance, and offer a variety of personalized configuration options; their newly designed cab is elegant, safe and comfortable. It is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.
| Weight Parameter | Curb Mass (kg) | 8800,9600 | |
| Full Loaded Mass (kg) | 25000 | ||
| Rated Towing Mass (kg) | 36200,40000,35400,39200 | ||
| Dimension Parameter | External Size | Length (mm) | 6850,7450,7050 |
| Width (mm) | 2496,2550 | ||
| Height (mm) | 3200,3880,3500,3790,3000,3090 | ||
| Wheel Base (mm) | 3225+1350,3200+1400,3825+1350,3800+1400,3425+1350,3400+1400 | ||
| Min. Ground Clearance (mm) | |||
| Performance Parameter | Max. Speed (km/h) | 102 | |
| Economic Speed (km/h) | |||
| Max. Grade Ability (%) | |||
| Min. Turning Diameter (m) | 15 | ||
| Engine | Model | MC11.36-50,MC11.40-50,MC11.44-50 |
| Net Power (kW)/Speed (r/min) | ||
| Max. Torque (Nm)/Speed (r/min) | 1800/1000-1400,1900/1000-1400,2100/1000-1400 | |
| Transmission | HW19712CL | |
| Clutch（mm） | 431 Diaphragm spring clutch | |
| Rear Axle Type | HT457（ Standard Version ）ST16（ Comprehensive Edition ） | |
| Rear Axle Ratio | ||
| Fuel Tank (L) | 700 | |
| Frame Section（mm） | 280*80*8(Local reinforcement)、300*80*(8+5) | |
| Suspension (Front/Rear Spring) | 3/-,3/2+-,3/5,3/12,4/-,4/2+-,4/5,4/12,9/2+-,9/12,2/3,2/4,3/4,2/-,2/12 | |
| Tire | 12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR,11.00R20 18PR,12.00R20 16PR,12.00R20 16PR/12.00R20 18PR | |
